RPS-429A-IS

Intrinsically Safe

C-UL-US ATEX IECEx

Certified Safe for Use In Explosive Atmospheres

  • Intrinsically Safe “IS”
  • ATEX, IECEx, & C-UL-US
  • Input Voltage 14-30 VDC
  • Reverse Polarity Protected
  • Analog Current Output (4 – 20 mA) 2-Wire Version
  • Analog Voltage Output (1 – 5 V) 4-Wire Version
  • Short Circuit Protected
  • Various Sensing Ranges
  • Wide Temperature Range
  • Temperature Compensation
  • Self Contained Sensor
  • PVC Enclosure

Categories & Tags

Description

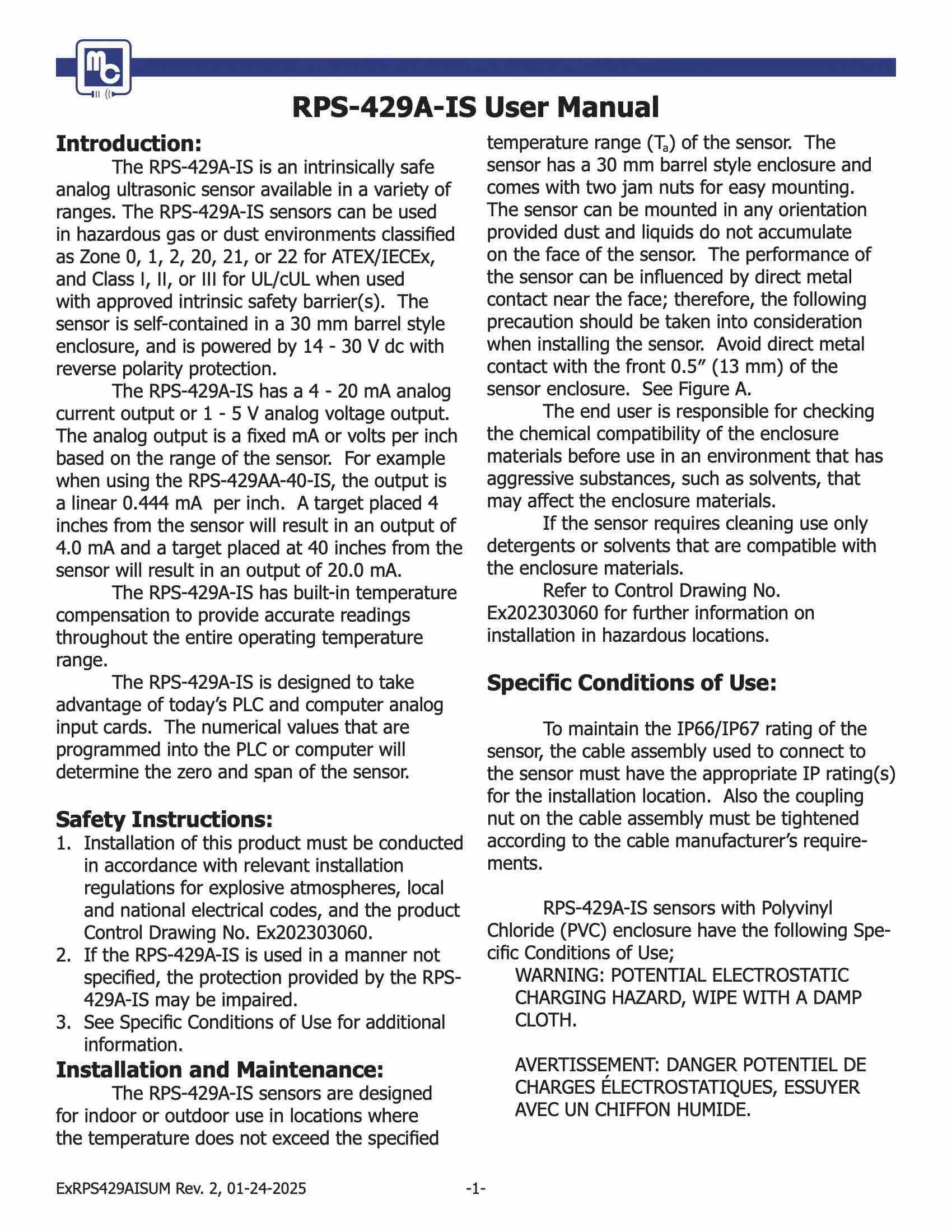

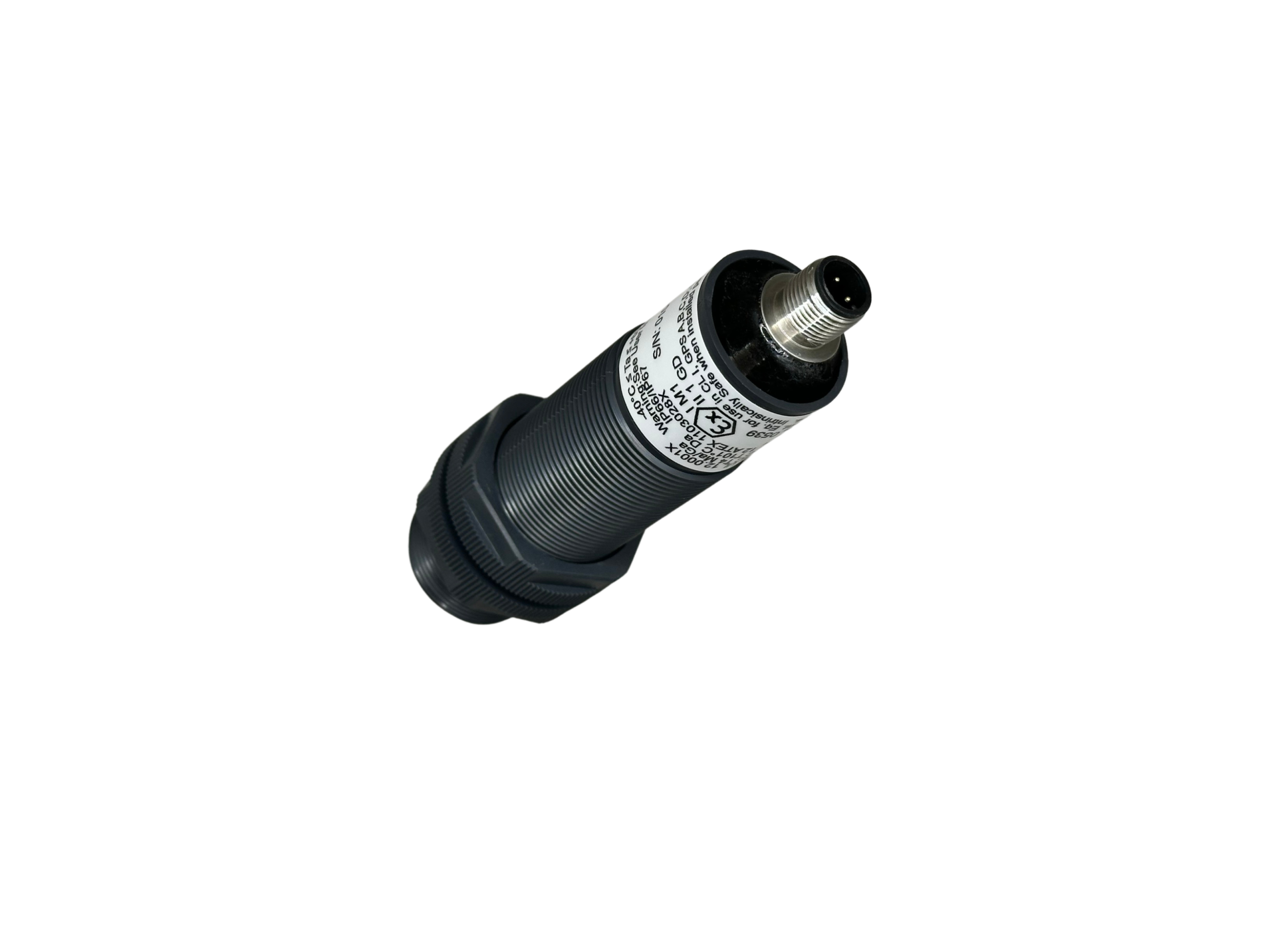

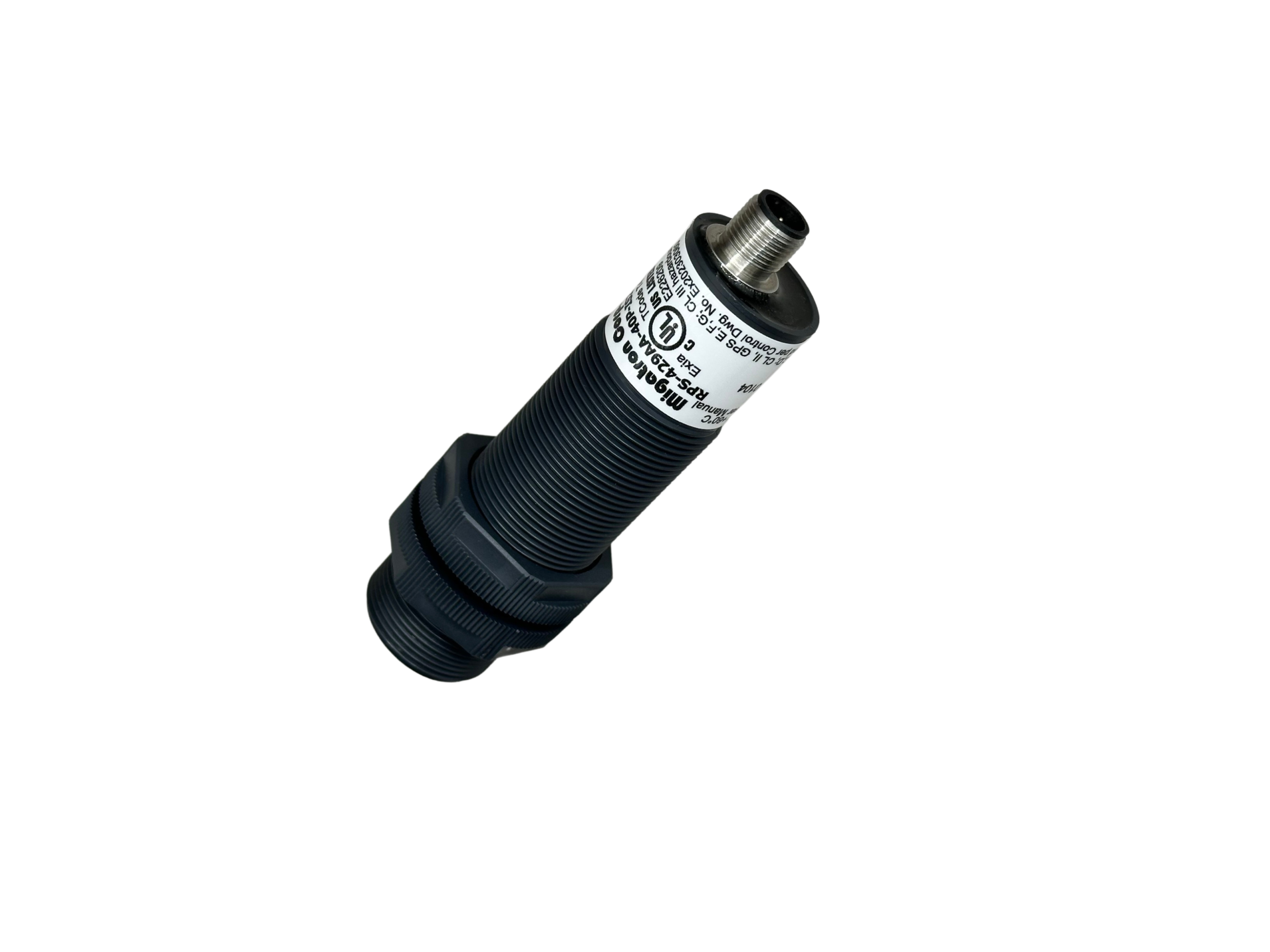

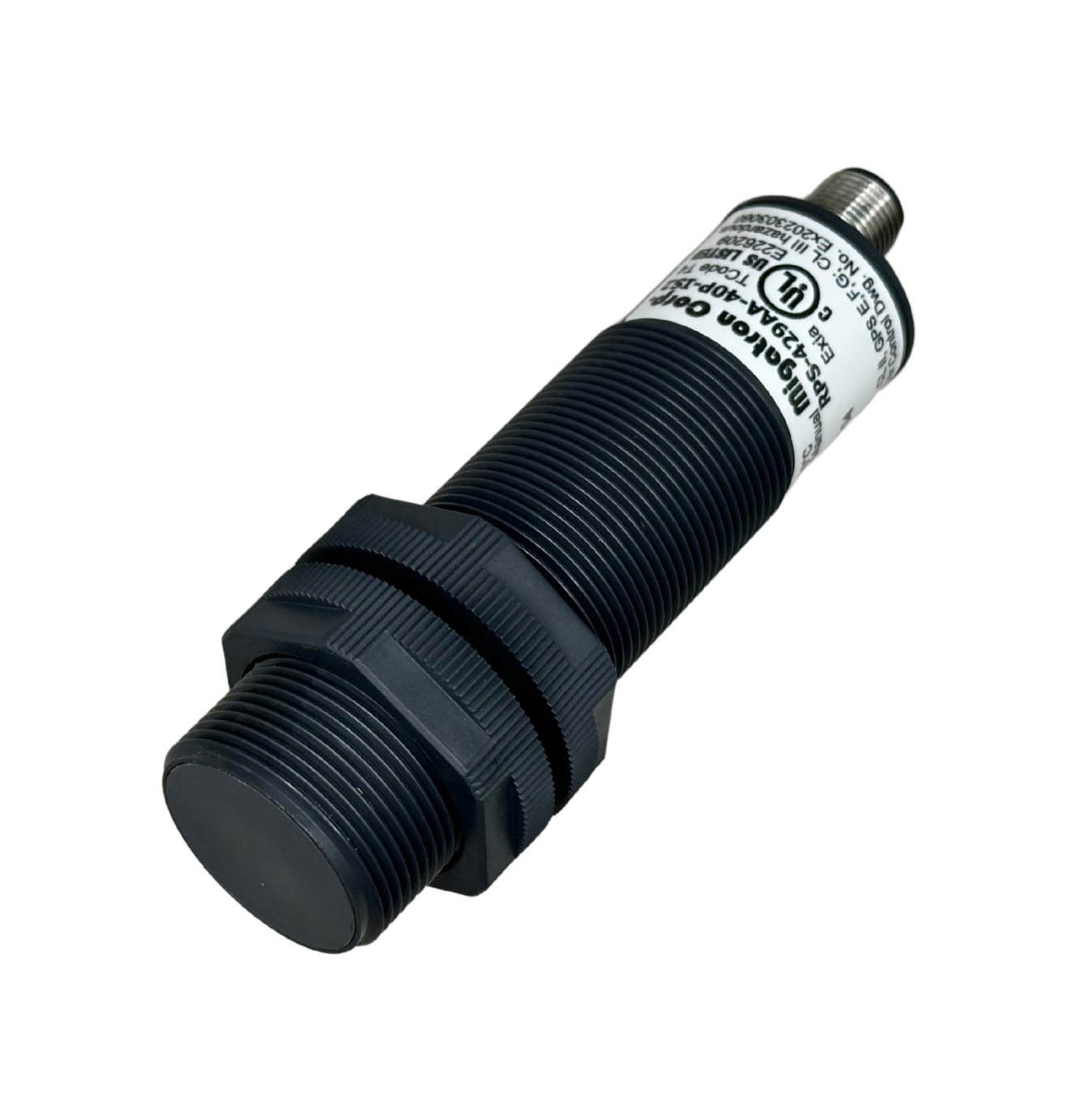

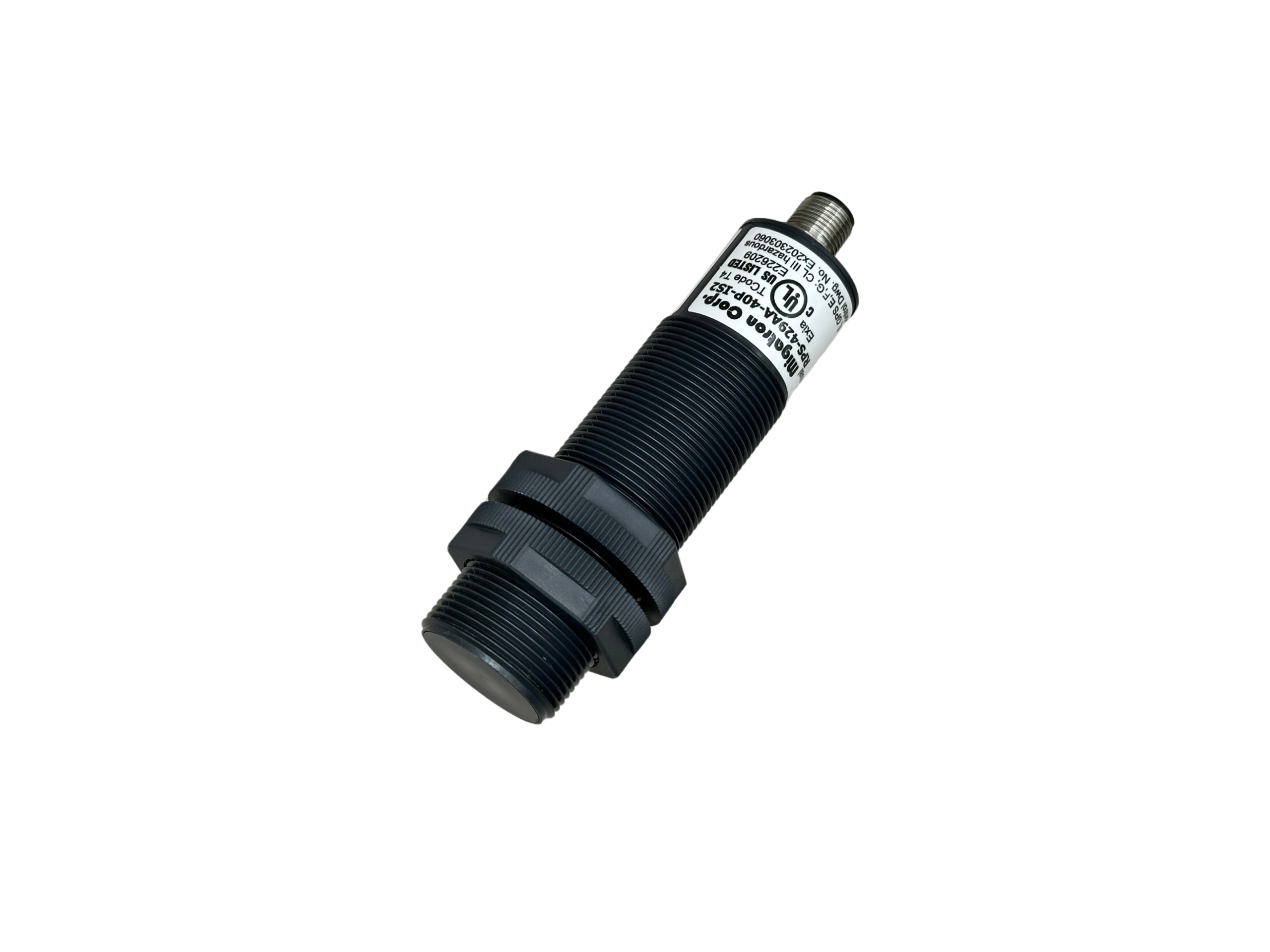

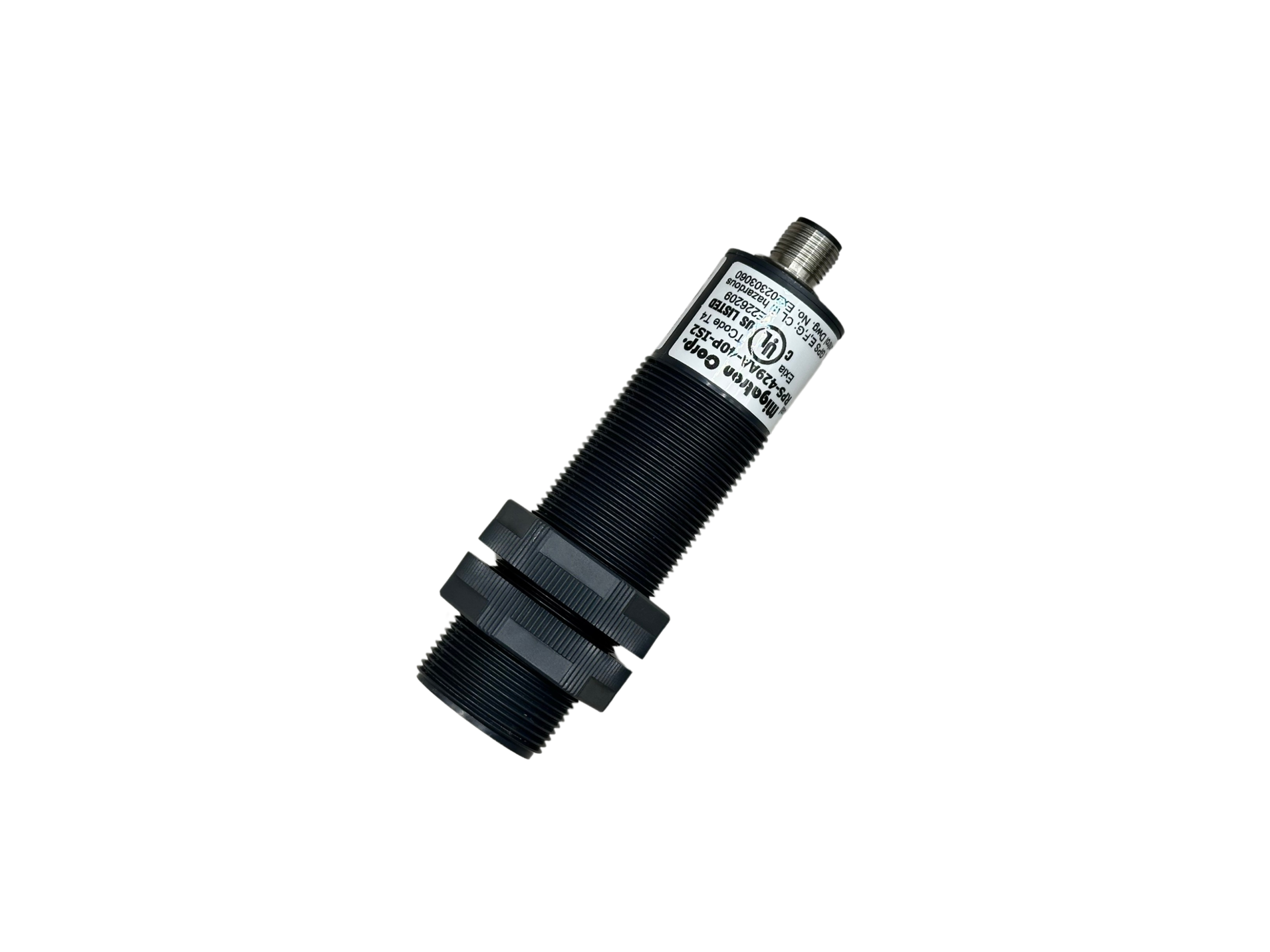

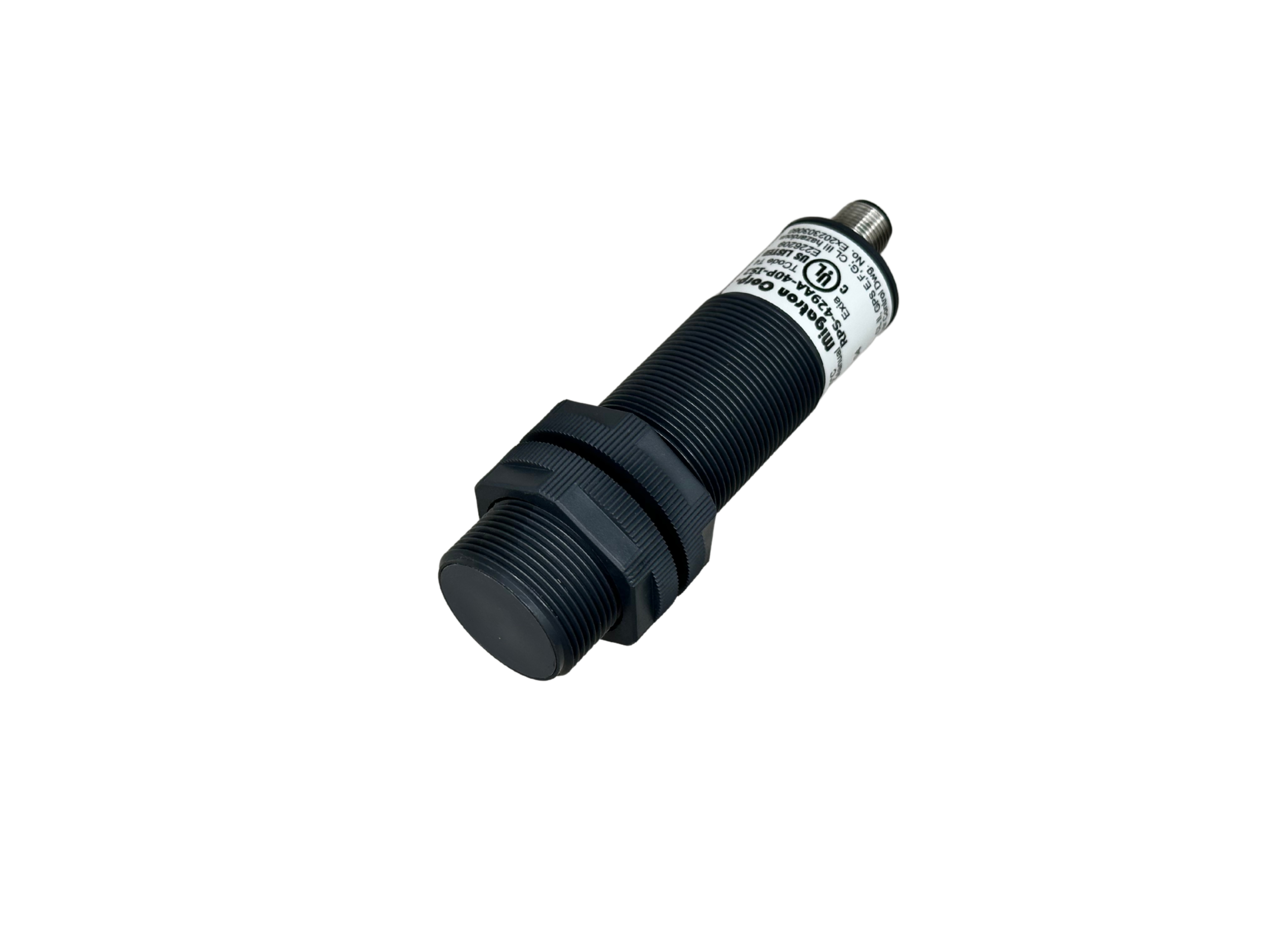

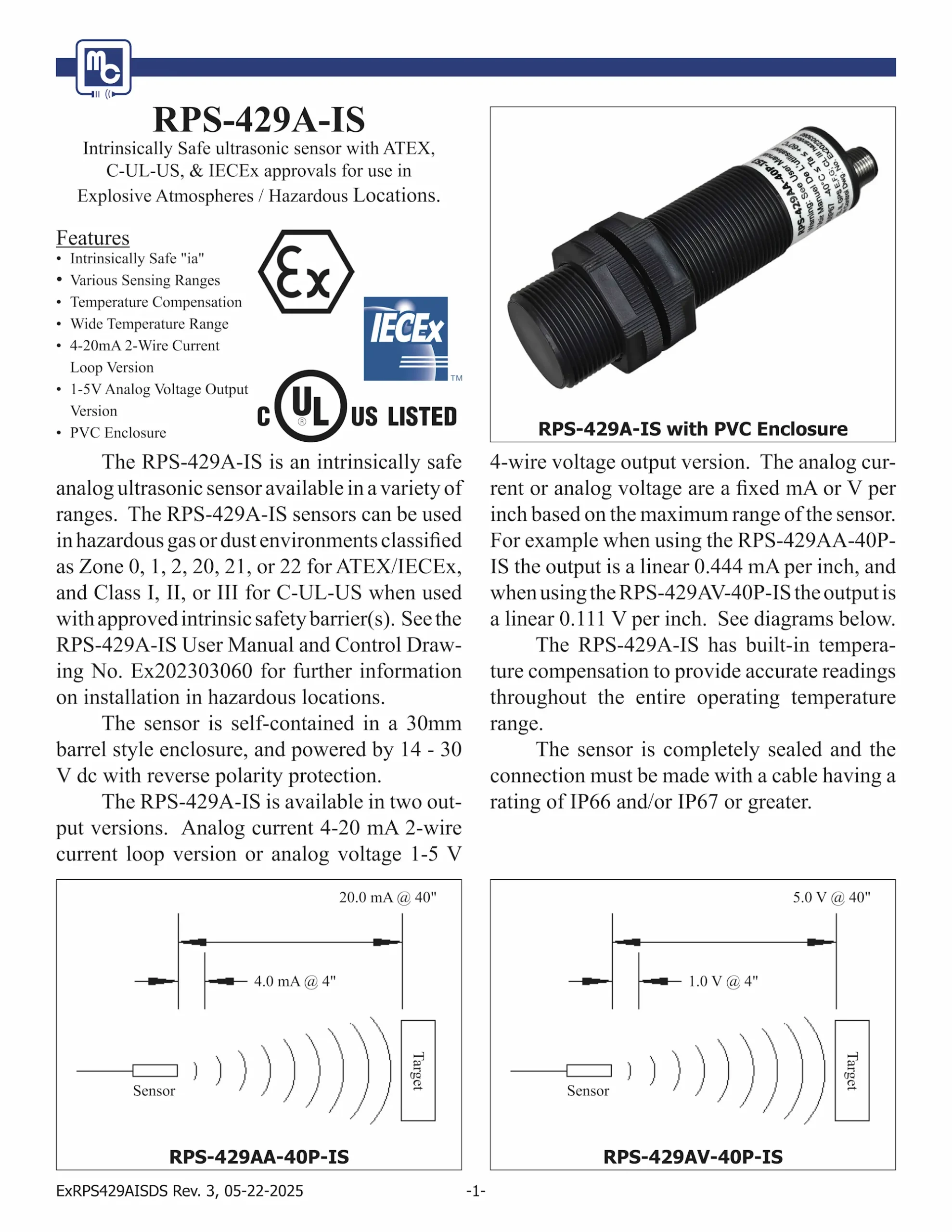

About the RPS-429A-IS Sensor

The RPS-429A-IS is an intrinsically safe analog ultrasonic sensor available in a variety of ranges. The RPS-429A-IS sensors can be used in hazardous gas or dust environments classified as Zone 0, 1, 2, 20, 21, or 22 for ATEX/IECEx, and Class I, II, or III for C-UL-US when used with approved intrinsic safety barrier(s). See the RPS-429A-IS User Manual and Control Drawing No. Ex202303060 for further information on installation in hazardous locations.

The sensor is self-contained in a 30mm barrel style enclosure, and powered by 14 – 30 V dc with reverse polarity protection.

The RPS-429A-IS is available in two out- put versions. Analog current 4-20 mA 2-wire current loop version or analog voltage 1-5 V 4-wire voltage output version. The analog current or analog voltage are a fixed mA or V per inch based on the maximum range of the sensor. For example, when using the RPS-429AA-40P-IS the output is a linear 0.444 mA per inch, and when using the RPS-429AV-40P-IS the output is a linear 0.111 V per inch.

The RPS-429A-IS has built-in temperature compensation to provide accurate readings throughout the entire operating temperature range.

The sensor is completely sealed and the connection must be made with a cable having a rating of IP66 and/or IP67 or greater.

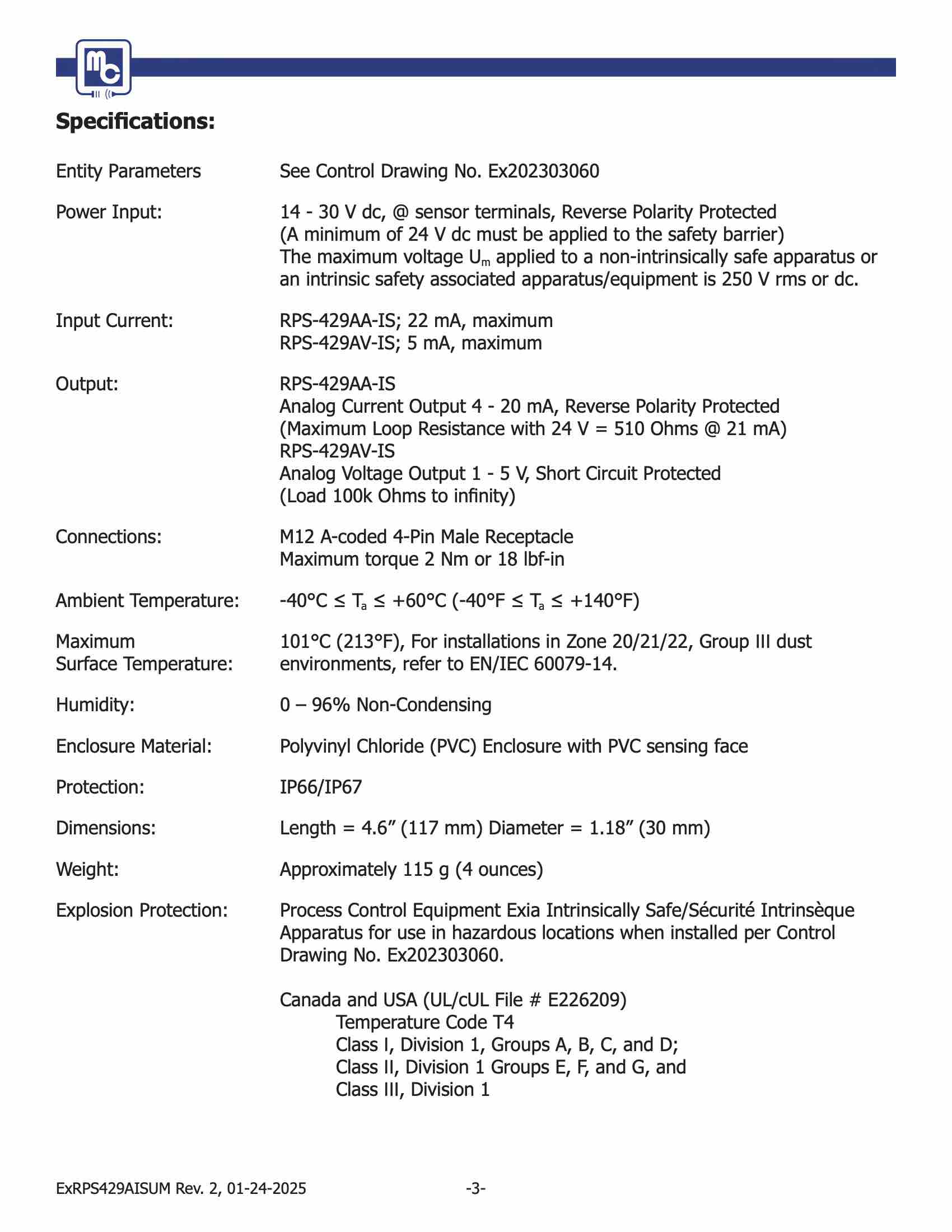

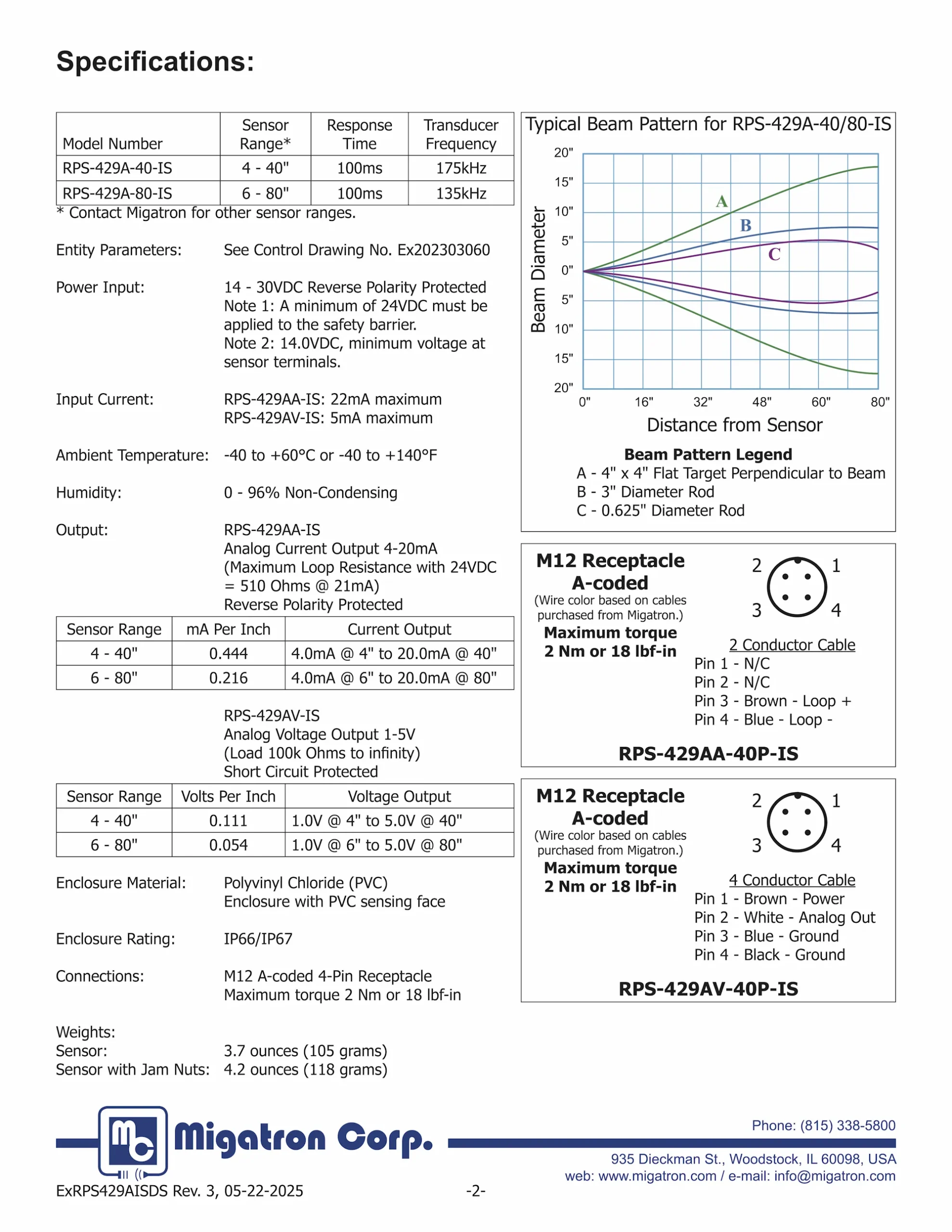

Specifications

ModelRangeResponse TimeTransducer Frequency
RPS-429A-40-IS4 – 40″100ms175kHz
RPS-429A-80-IS6 – 80″100ms135kHz



Power Input:14 – 30VDC Reverse Polarity Protected

Note 1: A minimum of 24VDC must be
applied to the safety barrier.

Note 2: 14.0VDC, minimum voltage at
sensor terminals.

Input Current:RPS-429AA-IS: 22mA maximum

RPS-429AV-IS: 5mA maximum

Ambient Temperature:-40 to +60°C or -40 to +140°F
Humidity:0 – 96% Non-Condensing
Output:RPS-429AA-IS

Analog Current Output 4-20mA

(Maximum Loop Resistance with 24VDC
= 510 Ohms @ 21mA)

Reverse Polarity Protected

Sensor RangemA Per InchCurrent Output
4 – 40″0.444

4.0mA @ 4″ to 20.0mA @ 40″

6 – 80″0.216

94.0mA @ 6″ to 20.0mA @ 80″

RPS-429AV-IS

Analog Voltage Output 1-5V

(Load 100k Ohms to infinity)

Short Circuit Protected

Sensor Range

Volts Per Inch

Voltage Output

4 – 40″

0.111

1.OV @ 4″ to 5.0V @ 40″

6 – 80″

0.054

1.0V @ 6″ to 5.0V @ 80″

Enclosure Rating:IP66/IP67
Enclosure Material:Polyvinyl Chloride (PVC) Enclosure with PVC sensing face
Weights:
Sensor:3.7 ounces (105 grams)
Sensor with Jam Nuts:4.2 ounces (118 grams)

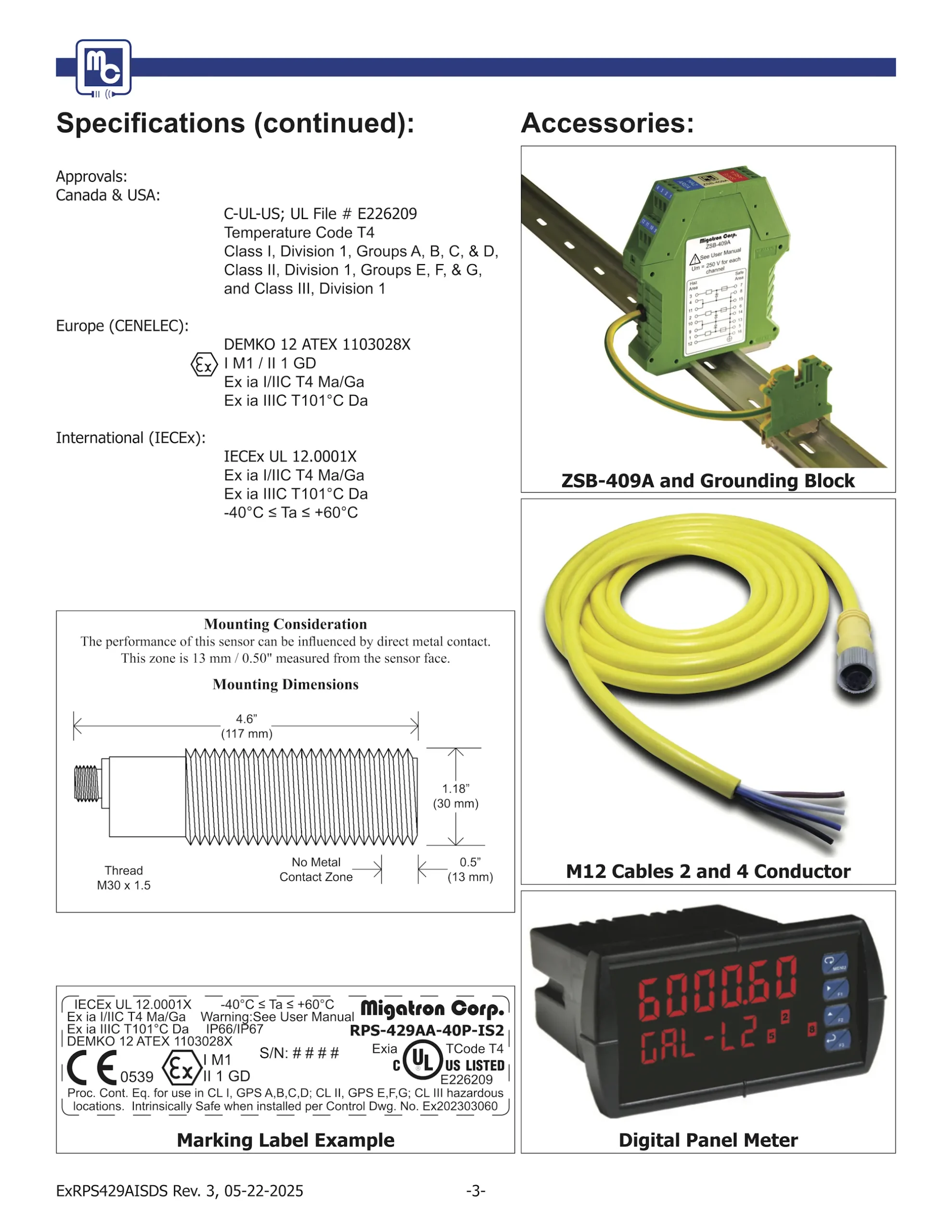

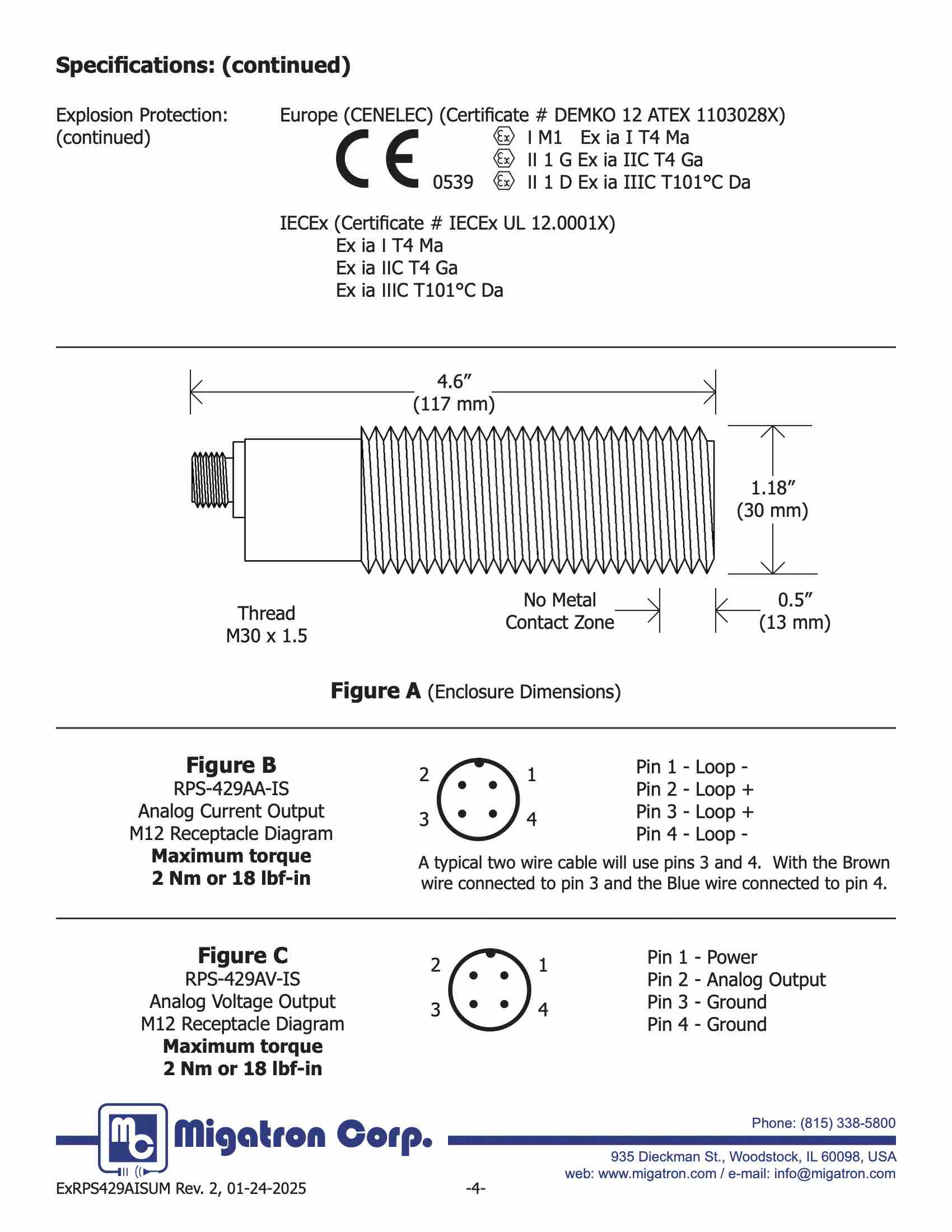

Explosion Protection and Approvals

Canada and USA (C-UL-US)

UL-US-L226209-47731-62012102-1

UL-CA-L226209-47761-62012102-1

Europe (ATEX)

DEMKO 12 ATEX 1103028X

International (IECEx)

IECEx UL 12.0001X

Class I, Division 1, Groups A, B, C, and D

Class II, Division 1, Groups E, F, and G

Class III, Division 1

I M1 / II 1 GD

Ex ia I/IIC T4 Ma/Ga

Ex ia IIIC T101°C Da

Ex ia I/ IIC T4 Ma/ Ga

Ex ia IIIC T101°C Da

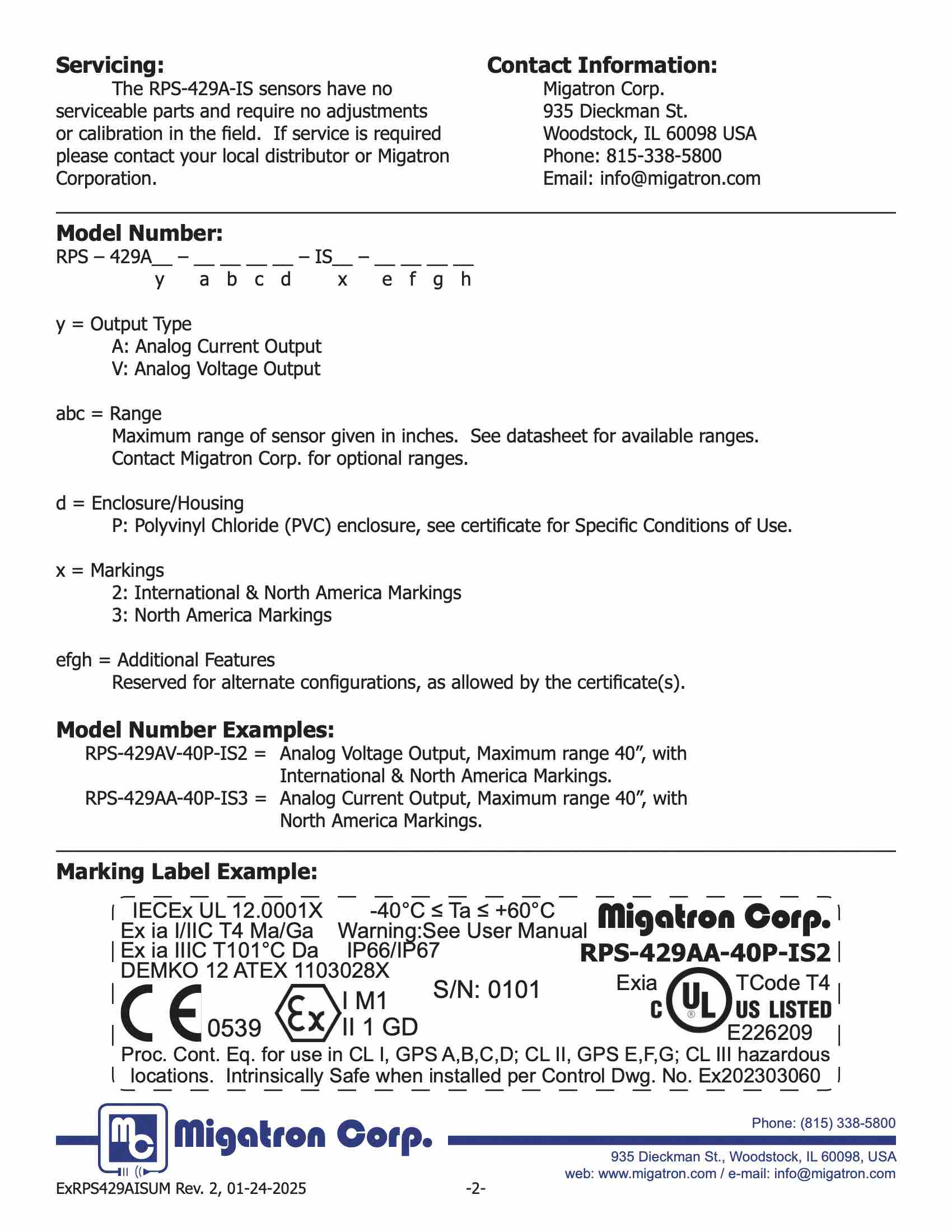

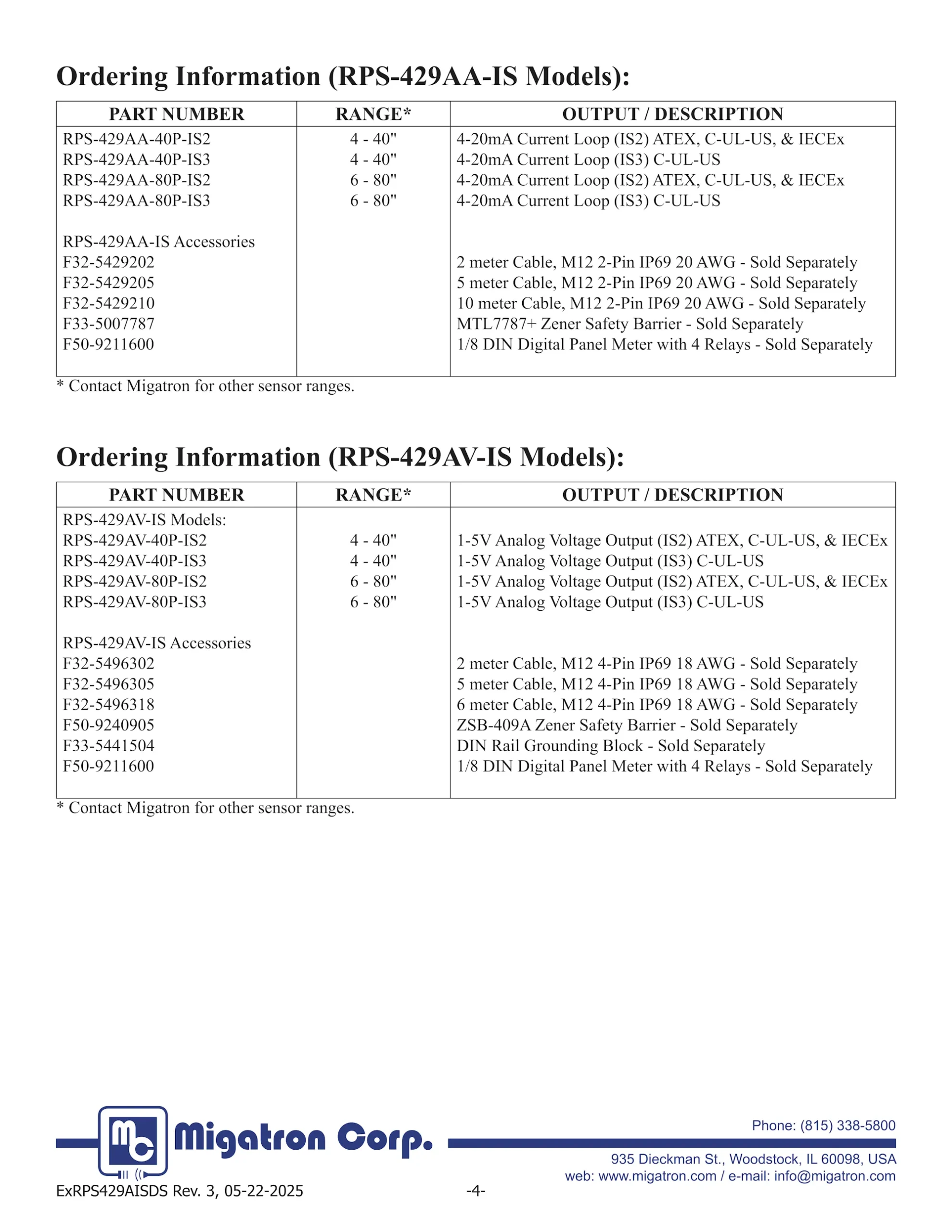

Ordering Information

Model/Part NumberRangeOutput/Description
RPS-429AA-IS Models:
RPS-429AA-40P-IS24 – 40″4-20mA Current Loop (IS2) ATEX, C-UL-US, & IECEx
RPS-429AA-40P-IS34 – 40″4-20mA Current Loop (IS3) C-UL-US
RPS-429AA-80P-IS26 – 80″4-20mA Current Loop (IS2) ATEX, C-UL-US, & IECEx
RPS-429AA-80P-IS36 – 80″4-20mA Current Loop (IS3) C-UL-US
RPS-429AV-IS Models:
RPS-429AV-40P-IS24 – 40″1-5V Analog Voltage Output (IS2) ATEX, C-UL-US, & IECEx
RPS-429AV-40P-IS34 – 40″1-5V Analog Voltage Output (IS3) C-UL-US
RPS-429AV-80P-IS26 – 80″1-5V Analog Voltage Output (IS2) ATEX, C-UL-US, & IECEx
RPS-429AV-80P-IS36 – 80″1-5V Analog Voltage Output (IS3) C-UL-US
RPS-429AA-IS Accessories
F32-54292022 meter Cable, M12 2-Pin IP69 20 AWG – Sold Separately
F32-54292055 meter Cable, M12 2-Pin IP69 20 AWG – Sold Separately
F32-542921010 meter Cable, M12 2-Pin IP69 20 AWG – Sold Separately
F50-92116001/8 DIN Digital Panel Meter with 4 Relays – Sold Separately
RPS-429AV-IS Accessories
F32-54963022 meter Cable, M12 4-Pin IP69 18 AWG – Sold Separately
F32-54963055 meter Cable, M12 4-Pin IP69 18 AWG – Sold Separately
F32-54963186 meter Cable, M12 4-Pin IP69 18 AWG – Sold Separately
F50-9240905ZSB-409A Zener Safety Barrier – Sold Separately
F33-5441504DIN Rail Grounding Block – Sold Separately
F50-92116001/8 DIN Digital Panel Meter with 4 Relays – Sold Separately
