Engineering Design Considerations Using the RPS-409A
Reliable bulk material detection on conveyors is fundamental to maintaining uninterrupted production flow. OEM design engineers developing conveyor-fed systems must ensure consistent material presence monitoring without introducing mechanical wear, process interference, or unstable signals.
Ultrasonic sensors for bulk material detection provide a non-contact solution that improves conveyor feed stability and reduces long-term maintenance risk. This paper outlines the engineering considerations behind ultrasonic sensing on conveyors and explains why the Migatron RPS-409A Ultrasonic Sensor is well suited for bulk material height and presence monitoring.
The Engineering Challenge of Conveyor Bulk Detection
Bulk materials on conveyors rarely present a uniform or predictable surface. Pellets mound. Grain shifts dynamically. Crushed materials form irregular peaks and valleys. These changing profiles create difficulty for sensors that may respond to localized surface variations rather than overall material condition.
For OEM conveyor system design, the objective is not simply to detect material, but to produce a stable and repeatable signal that represents actual bulk height. The sensing technology must function reliably despite constantly changing surface level.
Ultrasonic sensing addresses this challenge through time-of-flight measurement. A high-frequency acoustic pulse is transmitted toward the conveyor stream and reflected back from the material surface. The measured return time directly correlates to distance, allowing accurate bulk material height detection without physical contact.
Why Ultrasonic Sensors Improve Conveyor Feed Stability
Ultrasonic sensors for conveyor monitoring operate independently of material color. This characteristic allows engineers to use the same sensing architecture across multiple product types without engineering detection logic for each application.
The RPS-409A offers a sensing range of 4 to 144 inches , providing flexibility in mounting height and mechanical design. The beam profile of the RPS-409A is particularly valuable in bulk material applications.
For OEMs designing conveyor-fed extruders, packaging lines, processing equipment, or transfer systems, the ultrasonic approach improves control consistency.
Design Integration of Ultrasonic Conveyor Sensors

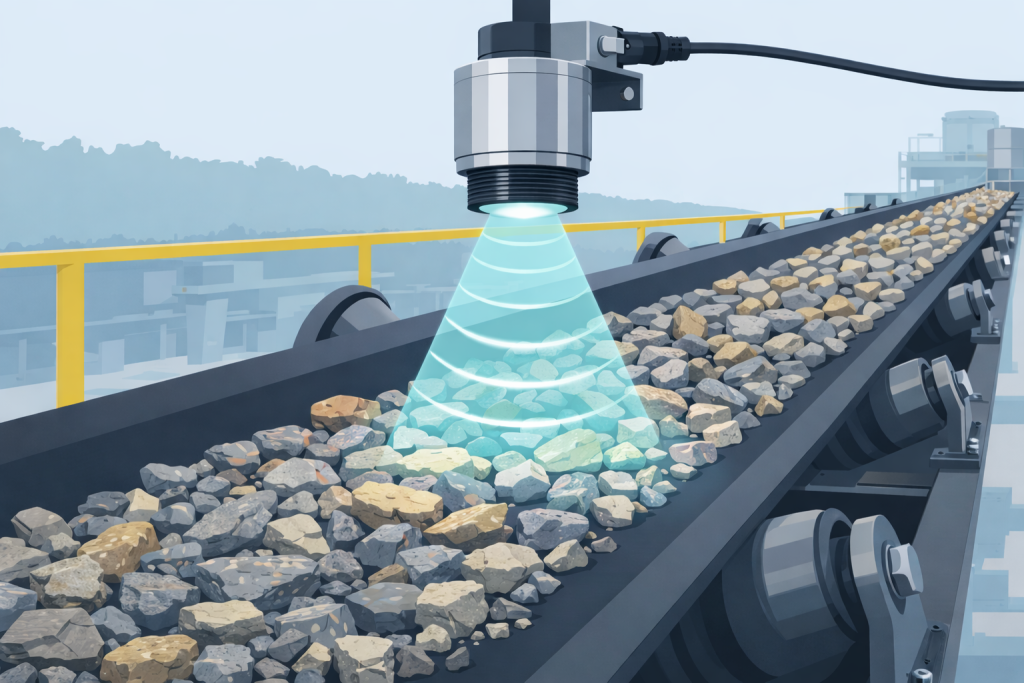

When integrating an ultrasonic level sensor into conveyor equipment, engineers must consider mounting geometry and field of view. The RPS-409A is typically mounted above the belt centerline, with sufficient clearance to remain within its 4 to 144 inch operating range.
From a control standpoint, ultrasonic distance measurement provides more than simple presence detection. The analog output can be scaled within the PLC to represent real-time material height. This enables the development of more advanced control strategies, including low material height alarms, upstream refill triggers, adaptive feed rate adjustments, and early detection of conveyor drift.
Because the RPS-409A does not require contact with the product stream, mechanical wear mechanisms are eliminated. This simplifies long-term maintenance planning and reduces service exposure for OEMs supplying production equipment into high-throughput environments.
Advantages of Non-Contact Bulk Material Monitoring
Mechanical probes and contact-based switches introduce potential failure points into conveyor systems. Continuous vibration, material impact, and mechanical cycling can shorten device life. In contrast, ultrasonic sensors for bulk material detection remain isolated from the moving product stream.
For OEM design engineers, this translates into improved reliability metrics, fewer field failures, and more predictable long-term performance. The absence of moving parts reduces drift and eliminates recalibration caused by mechanical deformation. This is especially valuable in continuous conveyor operations where downtime carries significant cost.
Ultrasonic sensors also provide scalability across product lines. A single sensing architecture can be incorporated into multiple conveyor configurations with minimal design change, simplifying inventory management and system standardization.
Application Scope for the RPS-409A
The RPS-409A is well suited for monitoring bulk materials such as resin pellets, grain, flake products, crushed materials, and other loose solids transported by conveyor systems .
For conveyor OEMs seeking a dependable ultrasonic sensor for bulk material detection, the RPS-409A provides a practical balance of range, and integration flexibility.
Conclusion
Ultrasonic sensors for bulk material detection on conveyors provide OEM design engineers with a stable, non-contact measurement solution capable of improving process reliability. By leveraging time-of-flight measurement, the RPS-409A delivers consistent conveyor material monitoring across irregular bulk surfaces.
Integrating ultrasonic conveyor sensors early in system design enhances feed stability, simplifies maintenance planning, and improves long-term machine performance. For engineers developing next-generation conveyor equipment, ultrasonic bulk material detection is a forward-looking design decision that supports reliability, scalability, and control precision.
