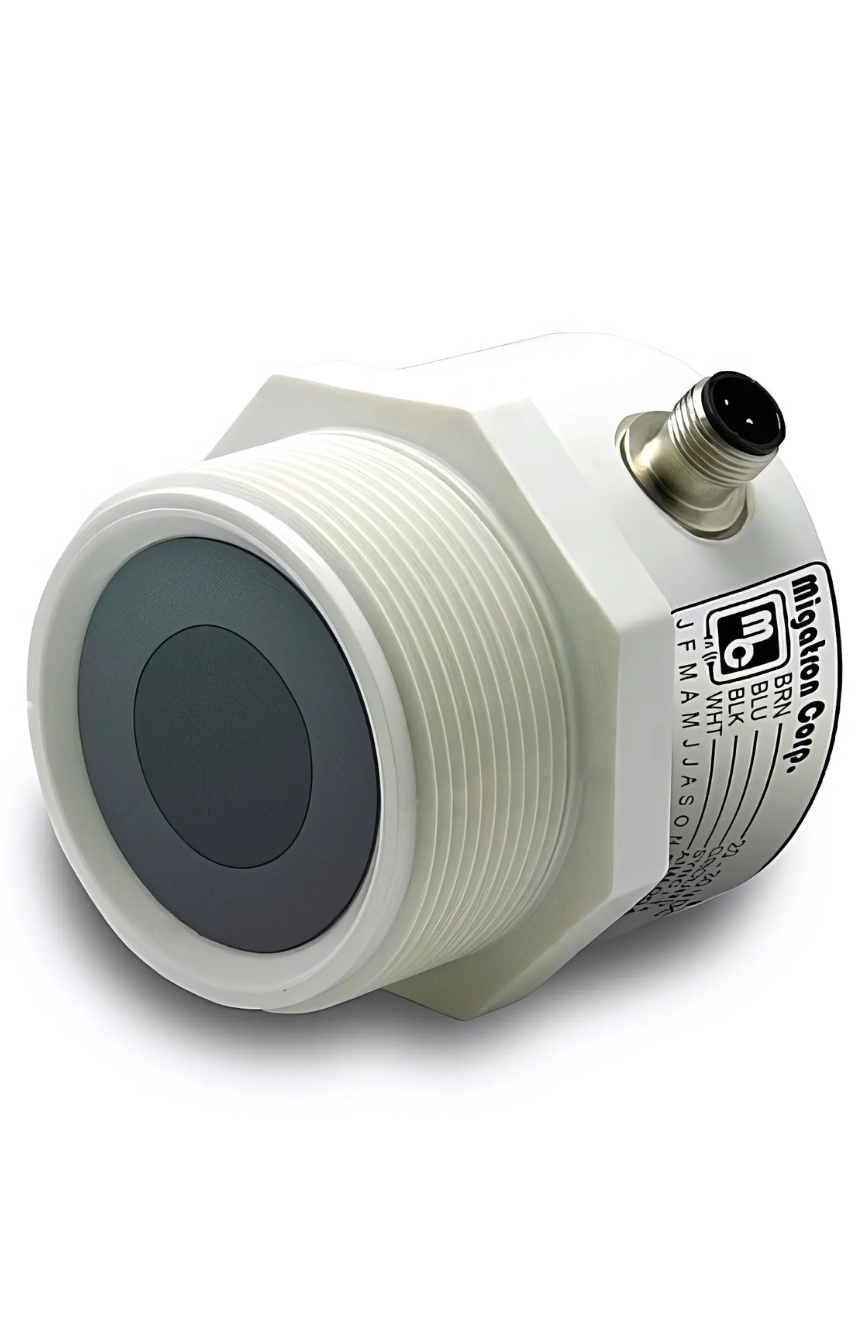

RPS-409A-2P Self Contained Sensor

  • Analog Voltage Output
  • Analog Current Output
  • Temperature Compensation
  • Input Voltage 20-30VDC
  • 2″ NPT Mounting Thread
  • Self-Contained Sensor
  • PVC Housing
  • Quick Disconnect Connector

Categories & Tags


About the RPS-409A-2P Sensor

The RPS-409A-2P analog ultrasonic sensor is a self contained sensor in a PVC housing with 2″ NPT mounting threads. It is powered by 20 – 30VDC with reverse polarity protection.

The RPS-409A-2P has a short circuit protected analog current sourcing 20 – 4mA output or an analog voltage 0 – 10VDC output. The analog current/voltage is a fixed mA/volts per inch based on the maximum range of the sensor.

The RPS-409A-2P has temperature compensation built in to provide accurate readings throughout the entire operating temperature range. The sensor is completely sealed and the connection is made by way of IP and NEMA rated cables.

In addition to the power and analog output lines there is also a Sync/Tx line. This can be used for connecting multiple sensors together to prevent cross talk (Sync), or to force the sensor to transmit at a particular time/interval (Tx).

The RPS-409A-2P is designed to take advantage of today’s PLC and computer analog input cards. The analog card chosen will determine the resolution of the system. The numerical values that are programmed into the PLC or computer will determine the zero and span.

If a set point or set points are required in the application, please refer to Migatron’s SPC-701, SPC-704, or M-1000 control products. Both the SPC-704 and M-1000 can also provide excitation power to drive the sensor.

Learn how our ultrasonic sensors work.


ModelRangeInput Current
RPS-409A-40-2P3 – 40″35mA Typical
RPS-409A-80-2P6 – 80″35mA Typical
RPS-409A-144-2P10 – 144″45mA Typical


Power Input:20 – 30VDC Reverse Polarity Protected
Ambient Temperature:-40 – 60°C / -40 – 140°F
Humidity:0 – 95% Non-Condensing
Housing Material:PVC with PVC Sensing Face
Housing Rating:IP67
Output:Current Sourcing Analog Output 20 – 4mA
(Load 0 – 500 Ohms Maximum)
Analog Voltage Output 0 – 10V
(Load 500 Ohms to Infinity)
Short Circuit Protected

280g / 10 ounces, without Cable


ModelFrequencyResponse Time
RPS-409A-40-2P175kHz25ms Typical
RPS-409A-80-2P135kHz25ms Typical
RPS-409A-144-2P70kHz150ms Typical


Ordering Information

Model/Part NumberRangeOutput/Description
RPS-409A-40-2PA3 – 40″Analog Current 20 – 4mA
RPS-409A-40-2PV3 – 40″Analog Voltage 0 – 10VDC
RPS-409A-80-2PA6 – 80″Analog Current 20 – 4mA
RPS-409A-80-2PV6 – 80″Analog Voltage 0 – 10VDC
RPS-409A-144-2PA10 – 144″Analog Current 20 – 4mA
RPS-409A-144-2PV10 – 144″Analog Voltage 0 – 10VDC
F32-5001183QD CABLE M12 4-P 6′ 22 AWG – Sold Separately
F32-5001186QD CABLE M12 4-P 16′ 22 AWG – Sold Separately
