RPS-401 and RPS-426 Proximity Sensors

Self Contained Proximity Sensors

Max Range: 80 inches

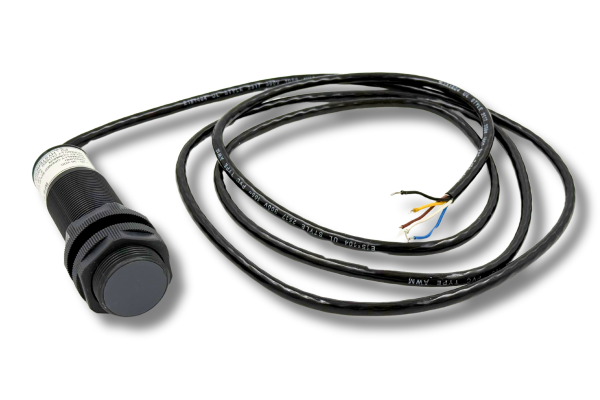

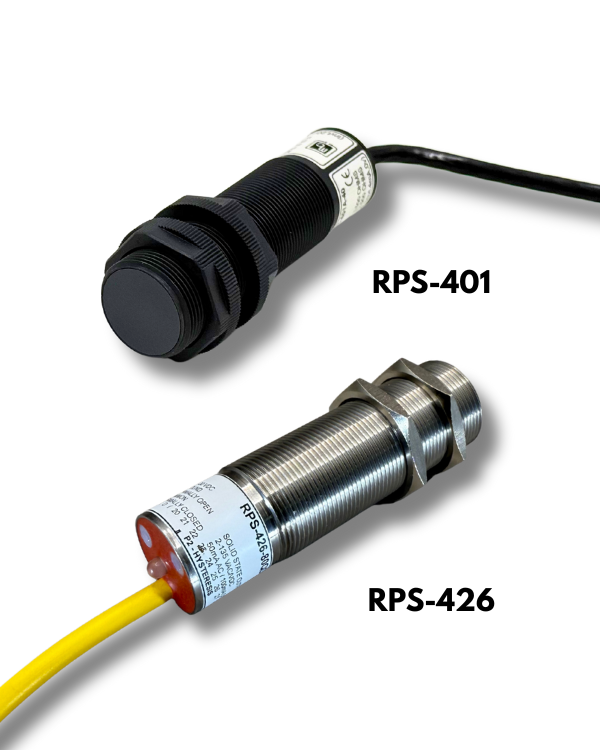

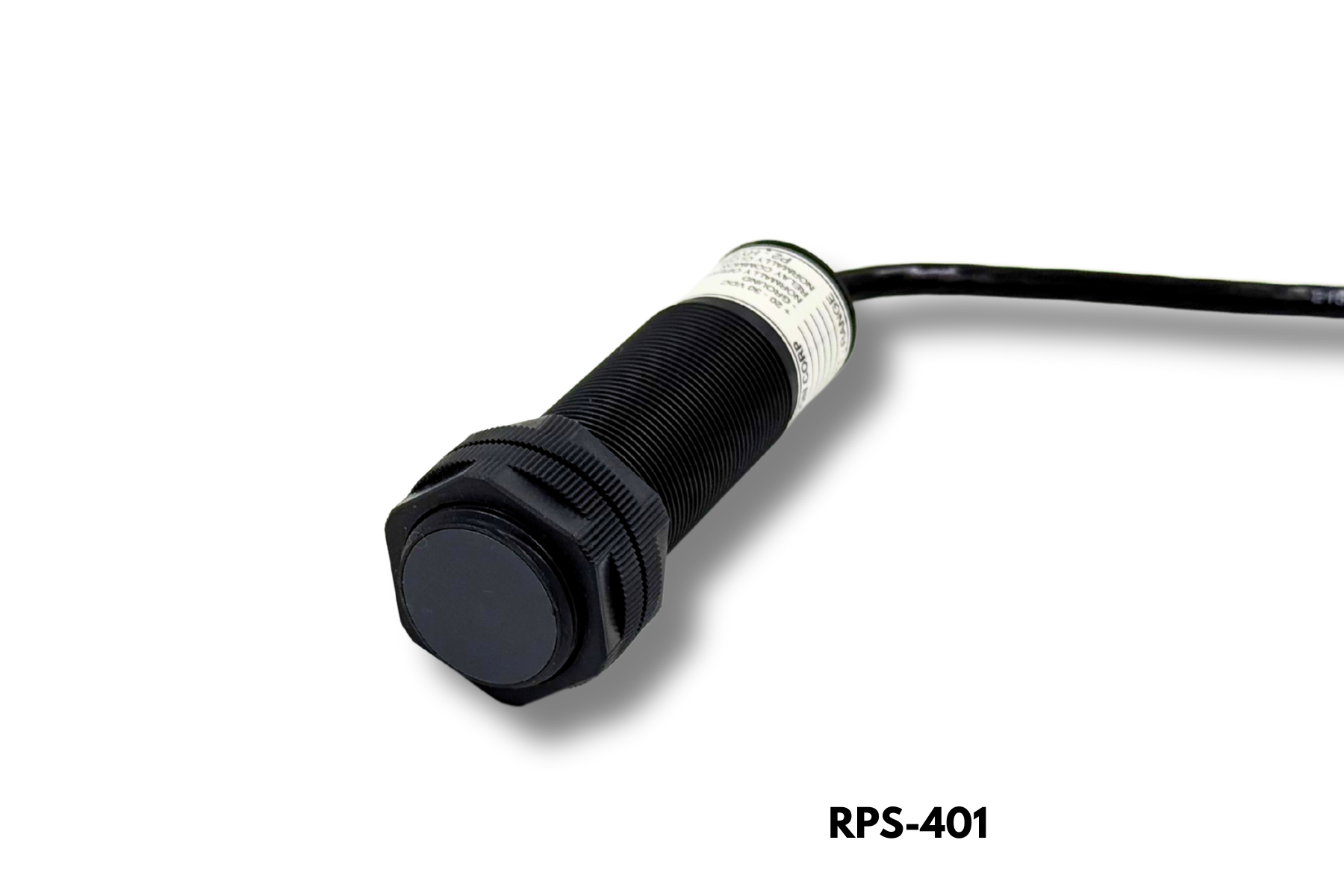

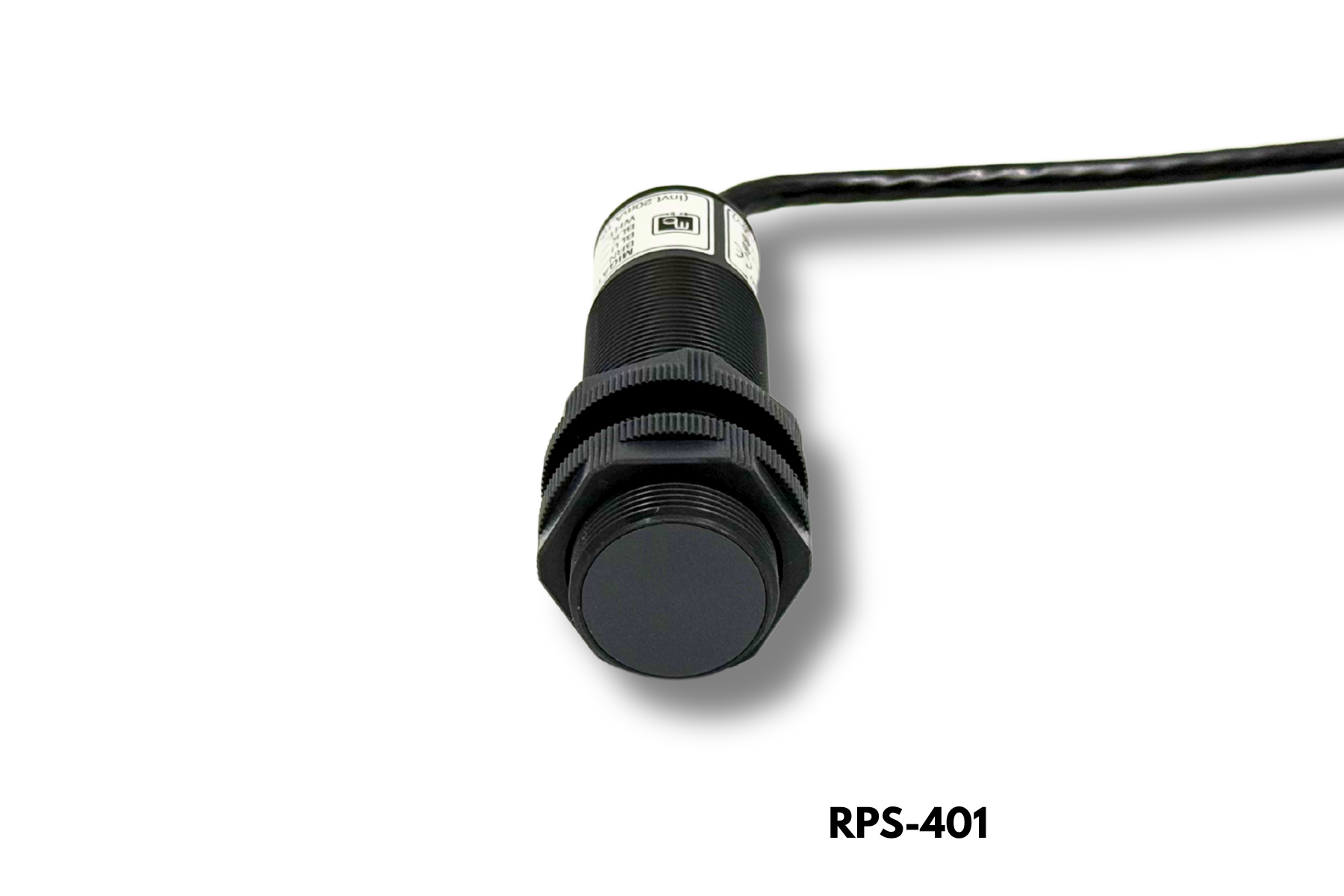

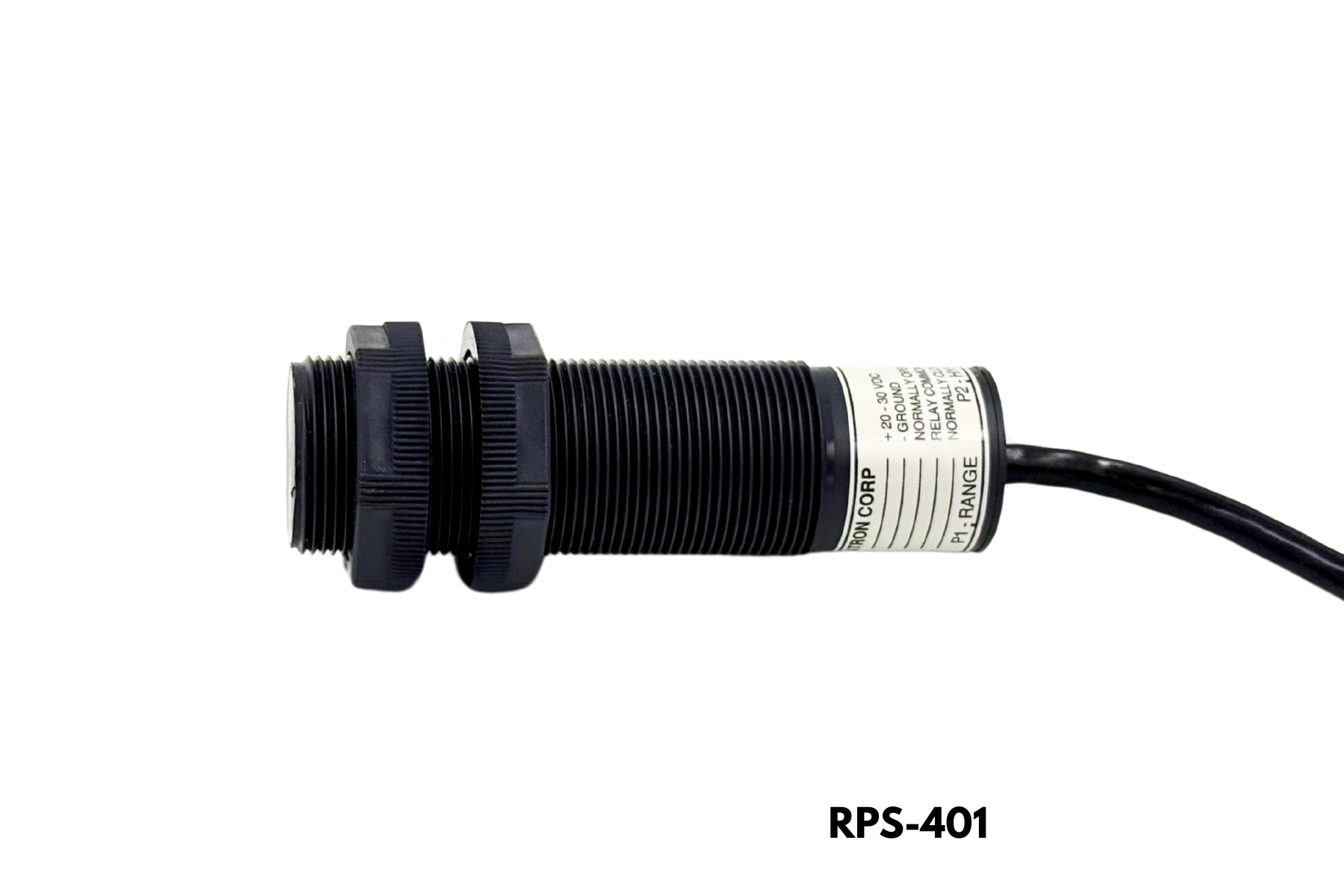

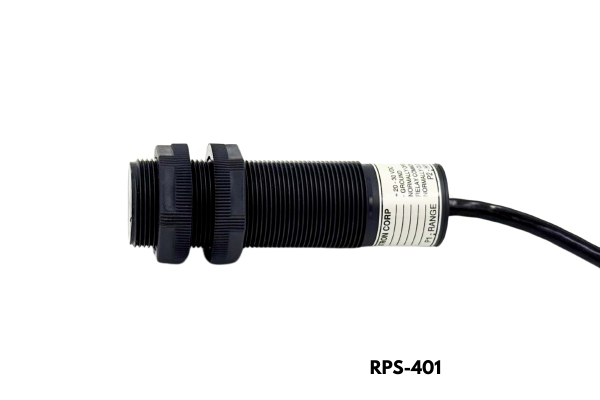

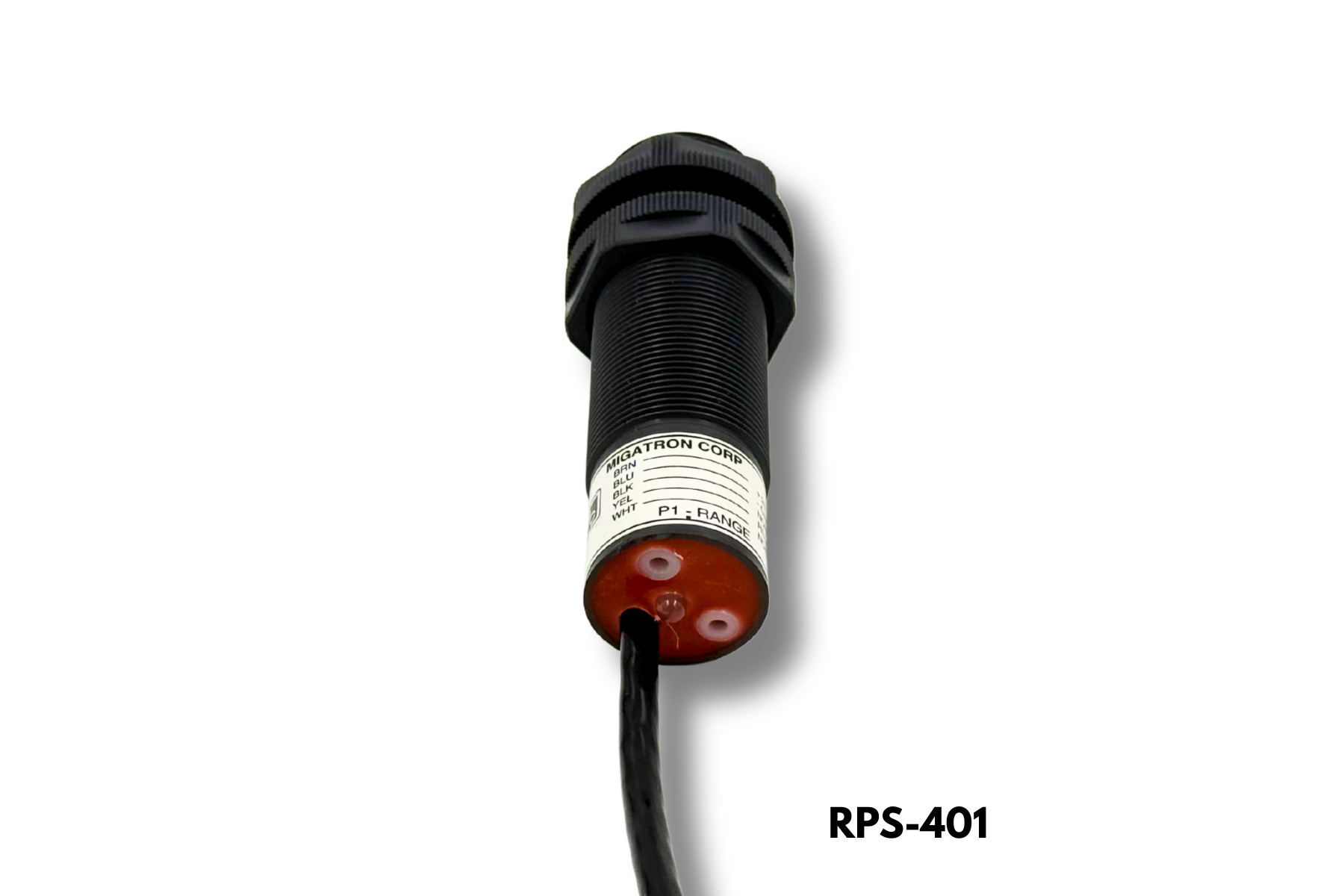

RPS-401 in PVC Housing

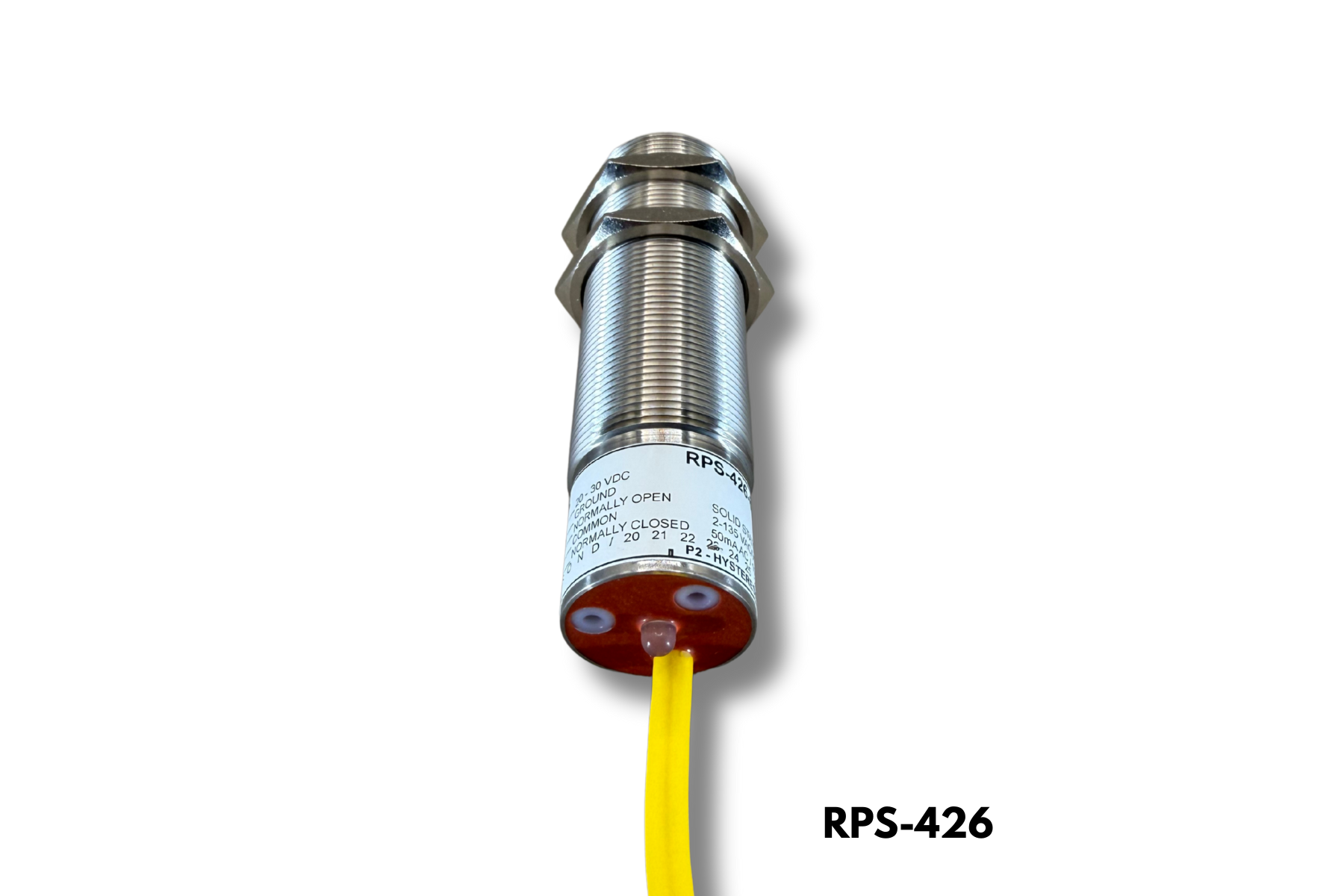

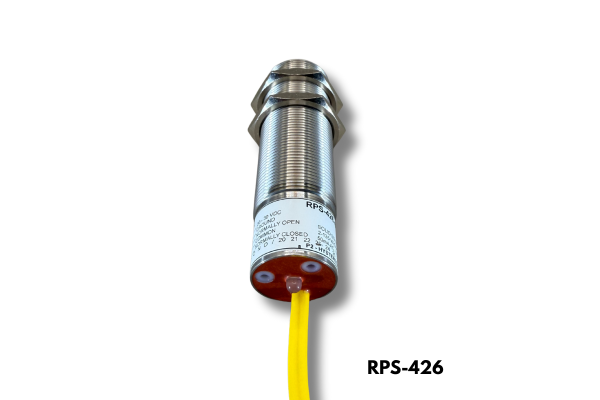

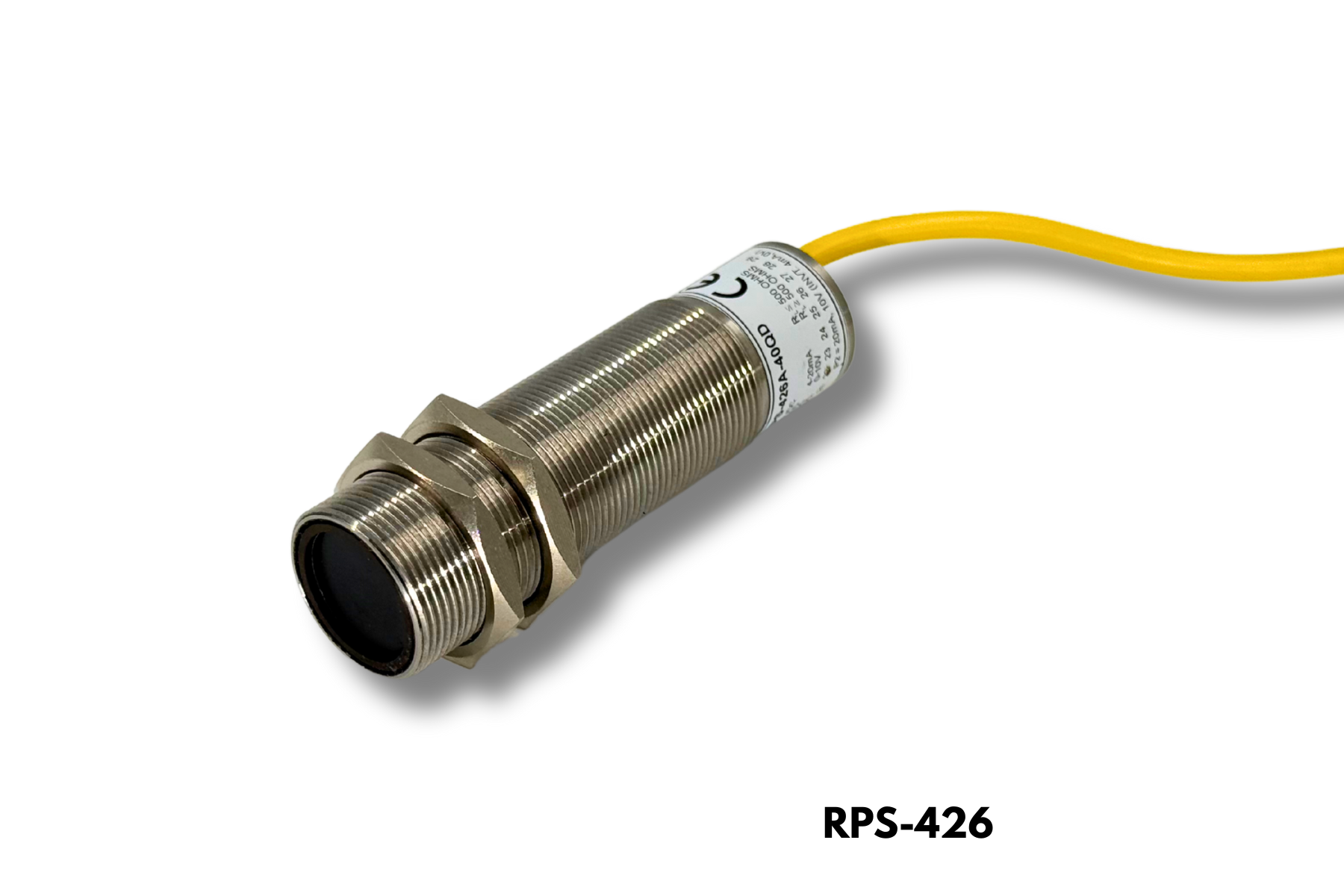

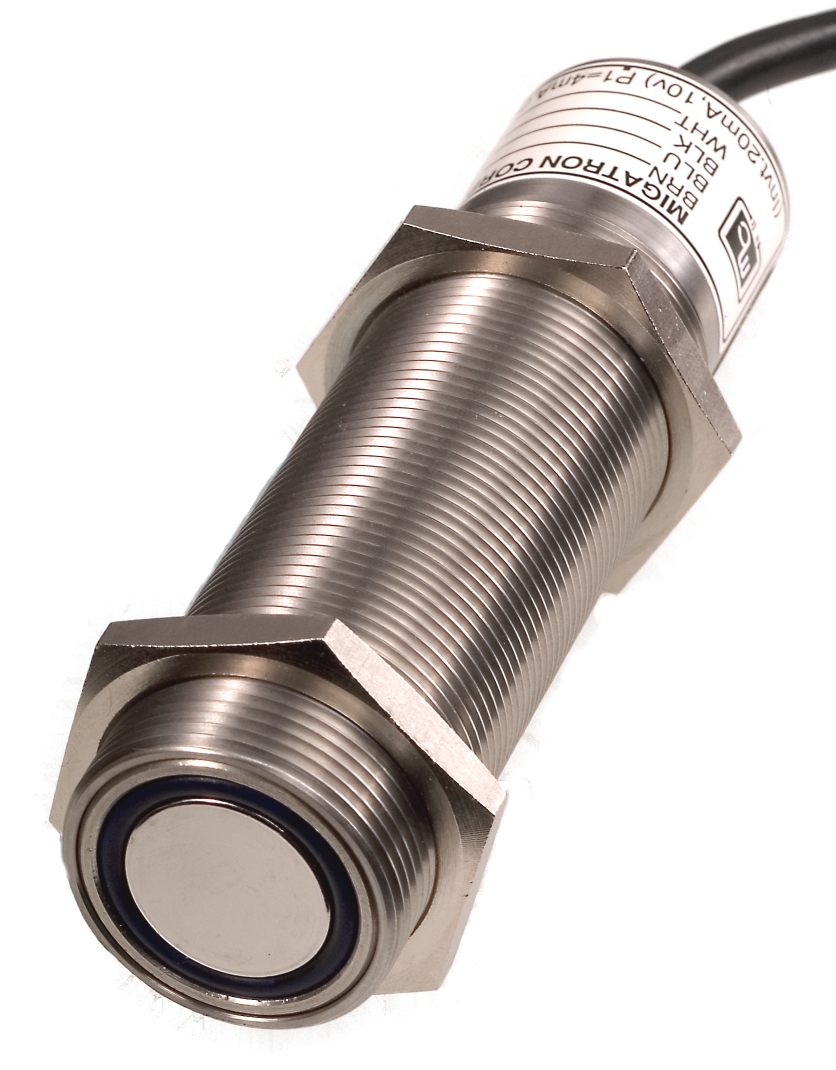

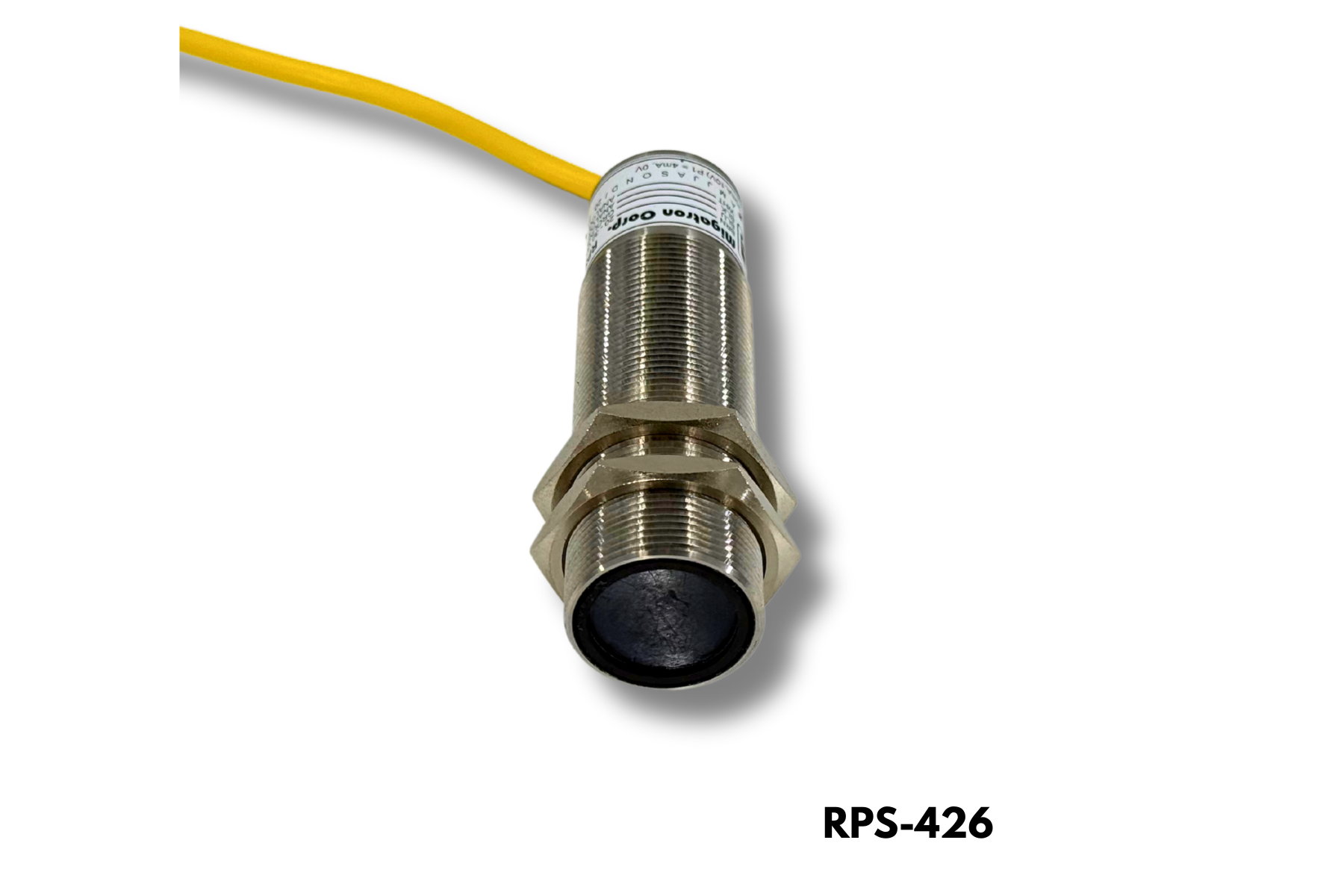

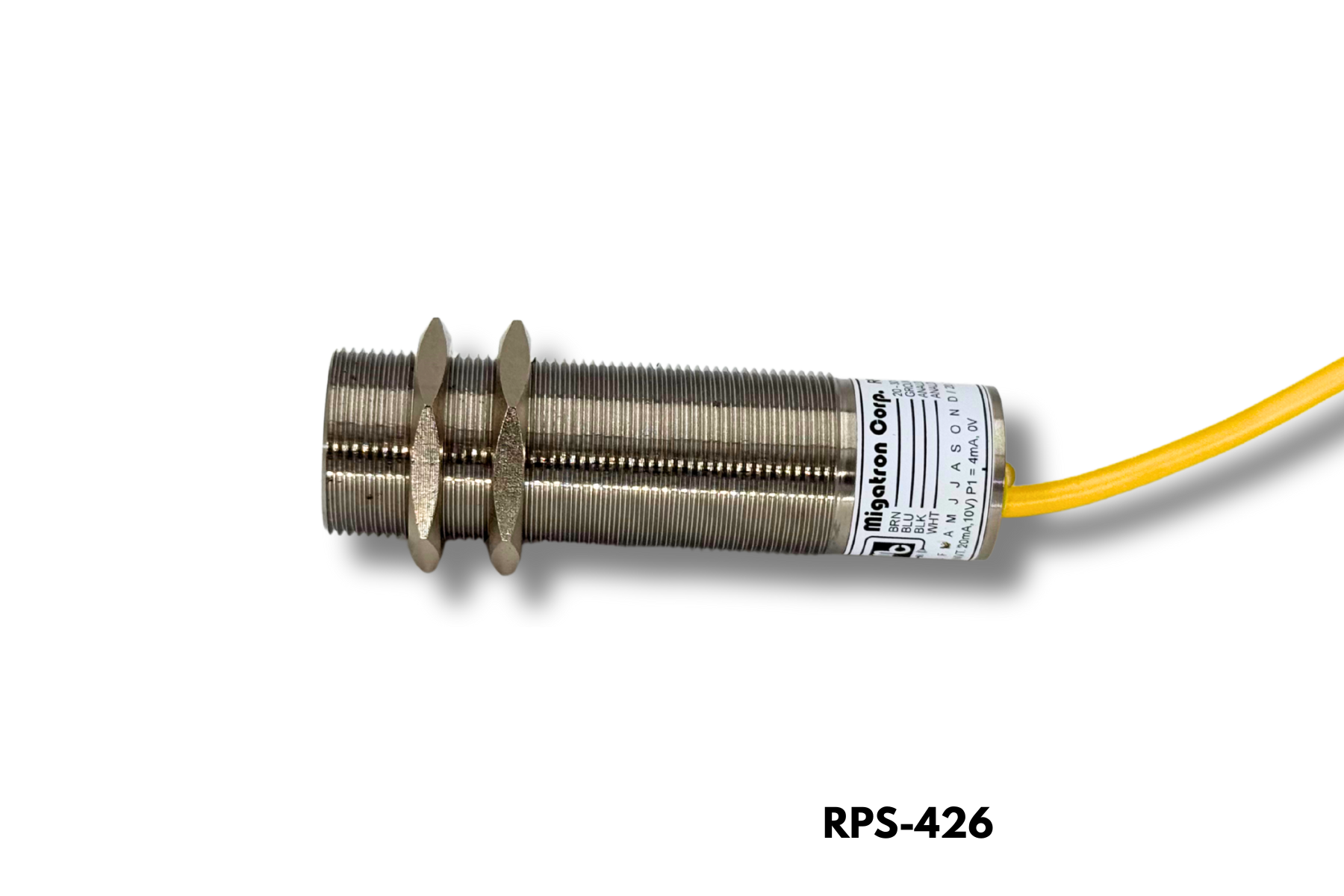

RPS-426 in Stainless Steel Housing

  • Sensing Range 4–40″, 8–80″
  • Narrow Sensing Beam
  • High Frequency
  • Range & Hysteresis Controls
  • Reverse Polarity Protected
  • Short Circuit Protected
  • Operates in Hostile Environments
  • Operating Voltage 20-30 VDC
  • Isolated N.O. N.C. Solid State Relays
  • Available in PVC or Stainless Steel Housing
  • Quick disconnect (QD) version is also available.

Categories & Tags

Description

About the RPS-401 Sensor

The RPS-401 ultrasonic proximity sensors are enclosed in a PVC barrel housing and are completely self-contained. They are powered by 20-30VDC and have reverse polarity protection. A sealed transducer provides protection in hostile environments. The sensor can be operated in two modes, proximity mode or hysteresis mode, as described below. The transducer frequency is 175kHz for the 4 to 40″ range and 150kHz for the 8 to 80″ range. The outputs consist of two solid state relays configured as N.O. and N.C. which can switch 2-130VAC or VDC up to 50mAAC or 100mADC continuous. The relay outputs are short circuit protected and isolated up to 1500 Volts RMS. The RPS-401 housing is constructed of PVC plastic. See the RPS-426 data sheet for the Stainless Steel version. The housing measures 30 mm in diameter by 104 mm in length. For set up purposes an LED indicator is provided. The LED will illuminate green when nothing is detected and will illuminate red when a target is detected. A standard 6′ cable is provided or a quick disconnect (QD) version is also available.

About the RPS-426 Sensor

The RPS-426 ultrasonic proximity sensors are enclosed in a Stainless Steel barrel housing and are completely self-contained. They are powered by 20-30VDC and have reverse polarity protection. A sealed transducer provides protection in hostile environments. The sensor can be operated in two modes, proximity mode or hysteresis mode, as described below. The transducer frequency is 175kHz for the 4 to 40″ range and 150kHz for the 8 to 80″ range. The outputs consist of two solid state relays configured as N.O. and N.C. which can switch 2-130VAC or VDC up to 50mAAC or 100mADC continuous. The relay outputs are short circuit protected and isolated up to 1500 Volts RMS. The RPS-426 housing is constructed of Stainless Steel and is able to with withstand higher temperatures than the PVC version(there is an up-charge for this housing). See the RPS-401 data sheet for the PVC plastic version. The housing measures 30 mm in diameter by 104 mm in length. For set up purposes an LED indicator is provided. The LED will illuminate green when nothing is detected and will illuminate red when a target is detected. A standard 6′ cable is provided or a quick disconnect (QD) version is also available.

Specifications

Operational Range: 40″ Models – Adjustable 4 – 40″
80″ Models – Adjustable 8 – 80″
Power Input: 20 – 30VDC Reverse Polarity Protected
Input Current: 50mA
Humidity: 0 – 95% Non-Condensing
Ambient Temperature: 0 – 60ºC or 32 – 140ºF
Housing: RPS-401 – PVC with PVC sensing face
RPS-426 – 303 Grade Stainless Steel with PPS
and PTFE sensing face
Output: 2 Solid State Relays N.O. & N.C.
Isolation 1500VRMS
2 – 130VAC or VDC
50mAAC or 100mADC Continuous
Short Circuit Protected
Transducer Frequency: 40″ Models – 175kHz
80″ Models – 150kHz
Response Time: 40″ Models – 30ms
80″ Models – 50ms
Weight: 5.5 to 12 ounces

Ordering Information

Part Number Range Output
RPS-401-40 4″ to 40″ 2 Solid State Relays N.O. & N.C.
RPS-401-80 8″ to 80″ 2 Solid State Relays N.O. & N.C.
RPS-401-40QD 4″ to 40″ 2 Solid State Relays N.O. & N.C. – Cable Sold Separately
RPS-401-80QD 8″ to 80″ 2 Solid State Relays N.O. & N.C. – Cable Sold Separately
RPS-426-40 4″ to 40″ 2 Solid State Relays N.O. & N.C.
RPS-426-80 8″ to 80″ 2 Solid State Relays N.O. & N.C.
RPS-426-40QD 4″ to 40″ 2 Solid State Relays N.O. & N.C. – Cable Sold Separately
RPS-426-80QD 8″ to 80″ 2 Solid State Relays N.O. & N.C. – Cable Sold Separately
F32-5001162 2 meter Cable for QD version, 1/2″-20 5-Pin 22 AWG
F32-5001164 6 meter Cable for QD version, 1/2″-20 5-Pin 22 AWG
