RPS-401A and RPS-426A Analog Ultrasonic Sensors

Analog Ultrasonic Sensors

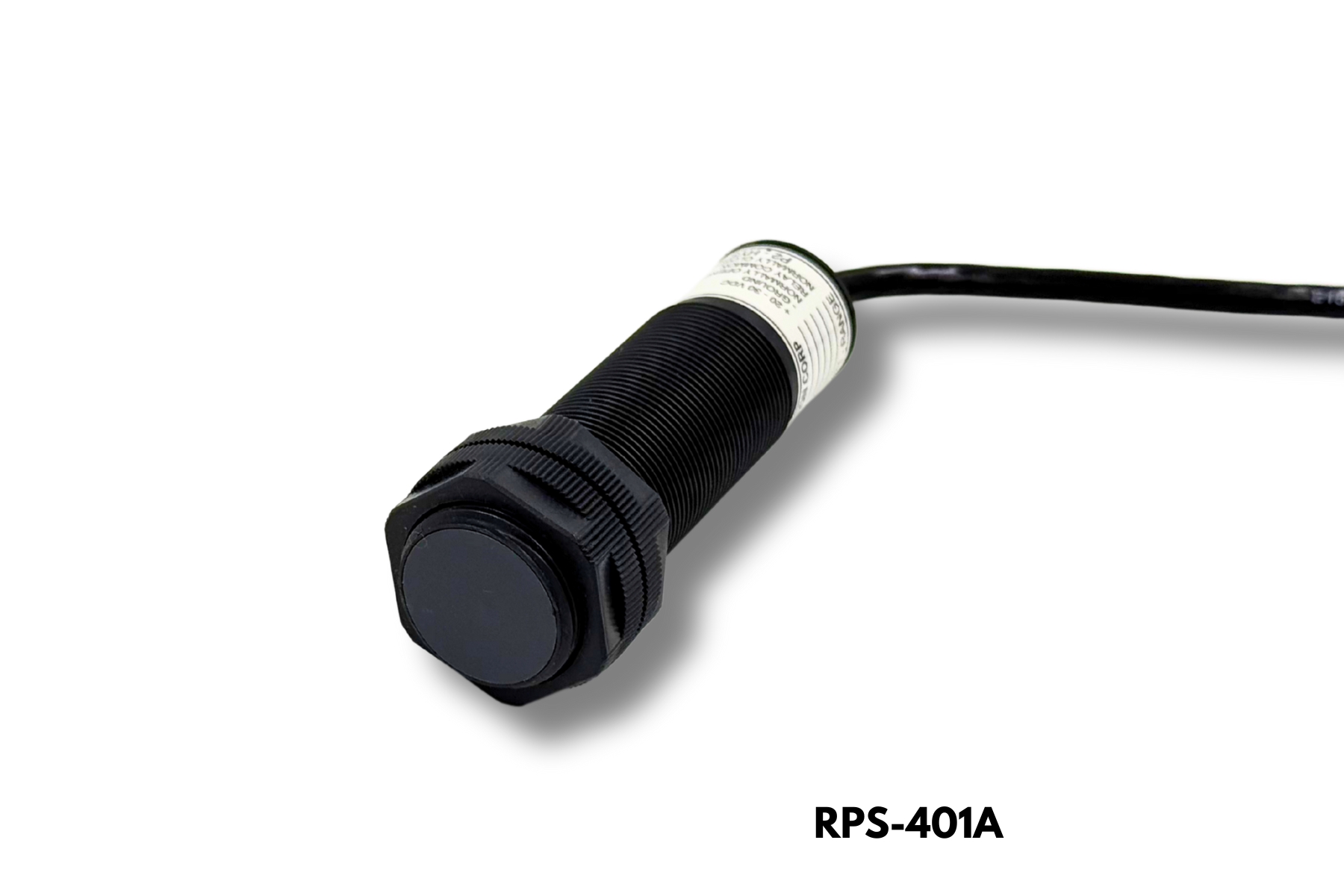

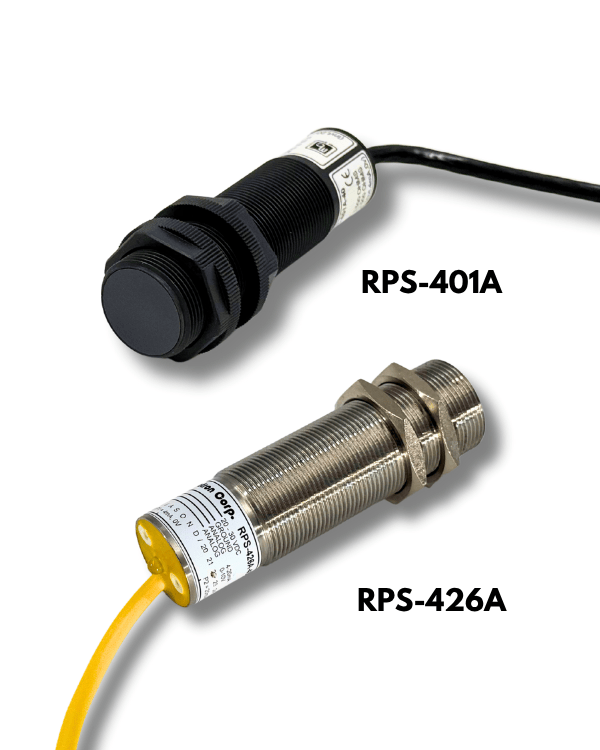

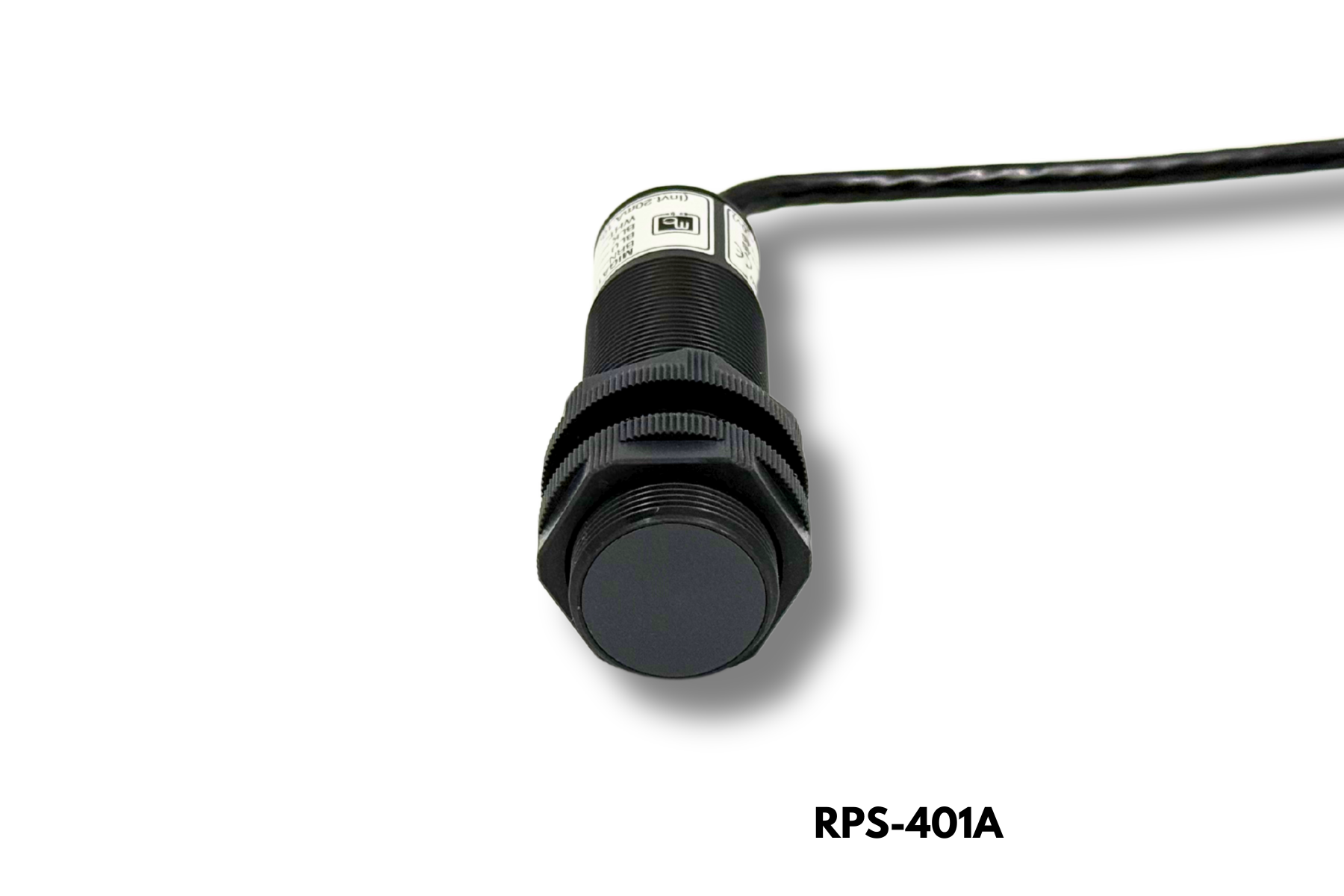

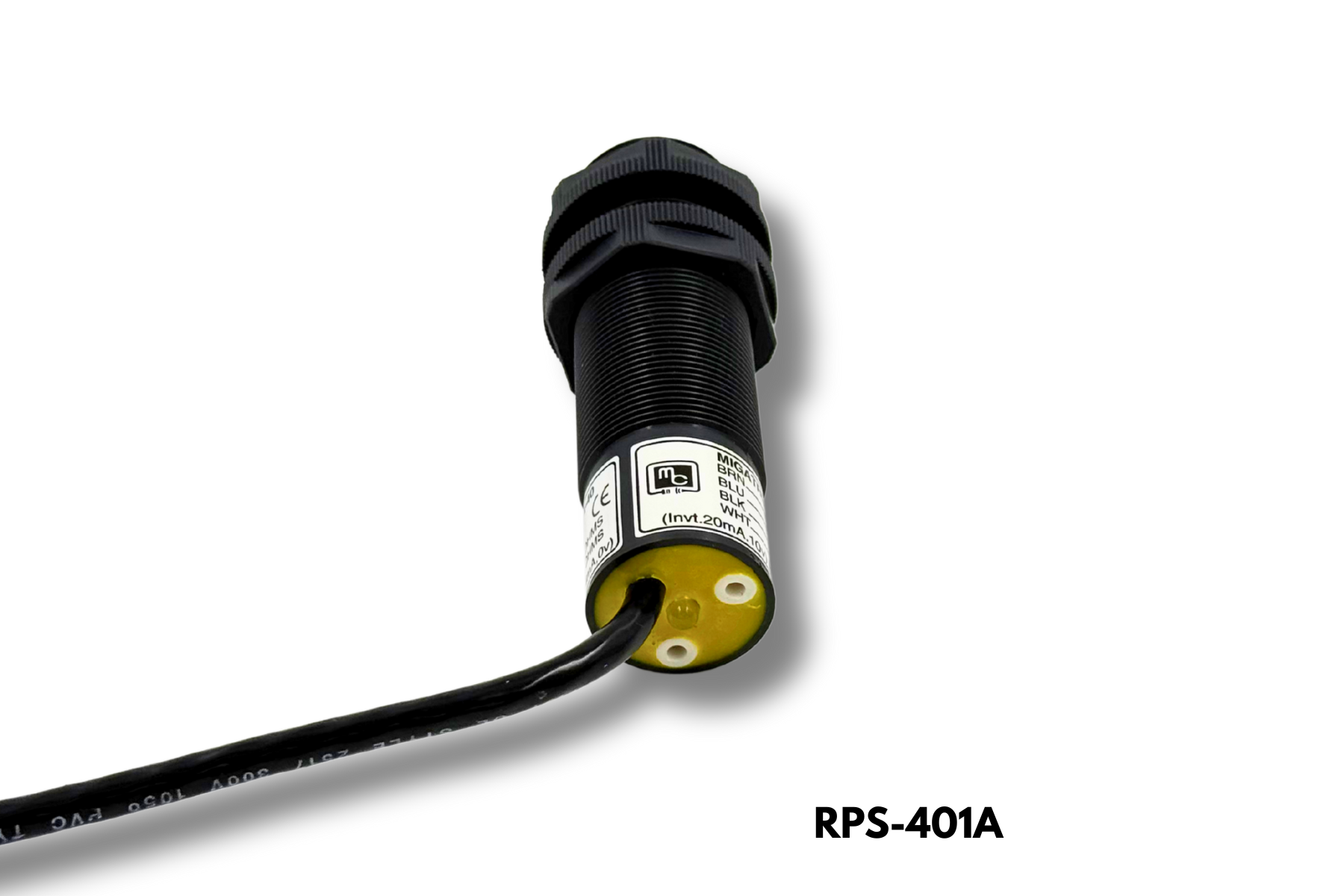

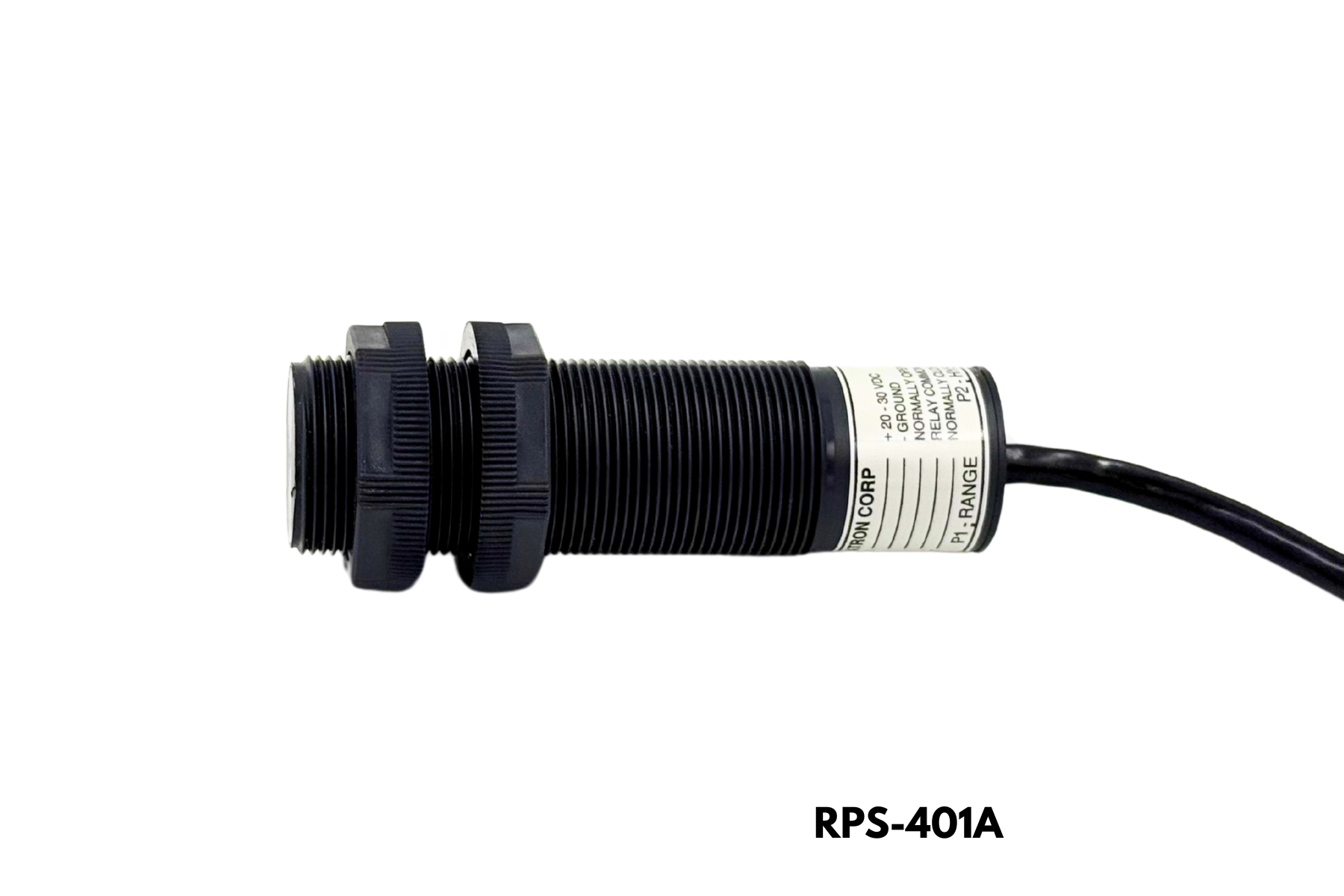

RPS-401A in PVC Housing

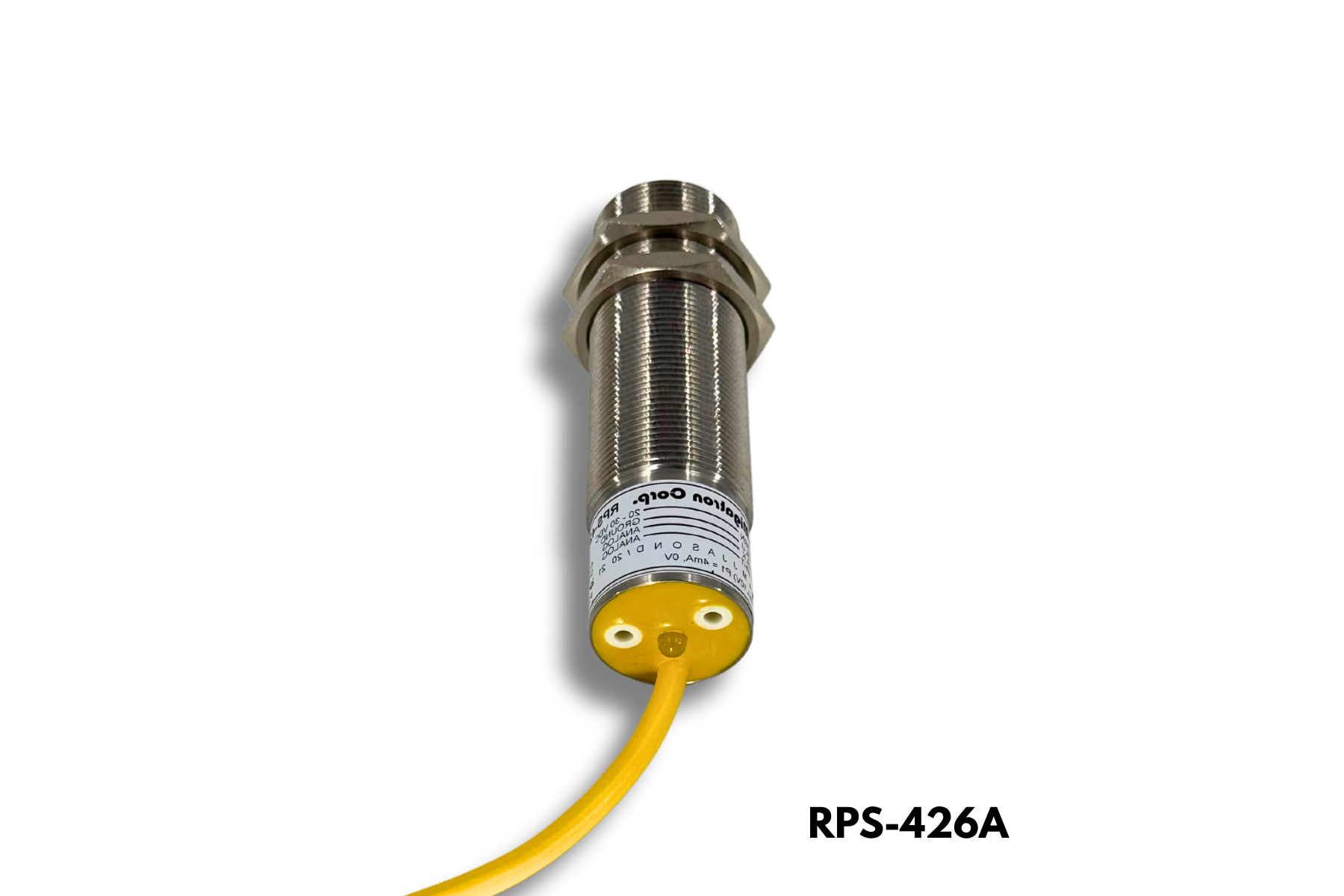

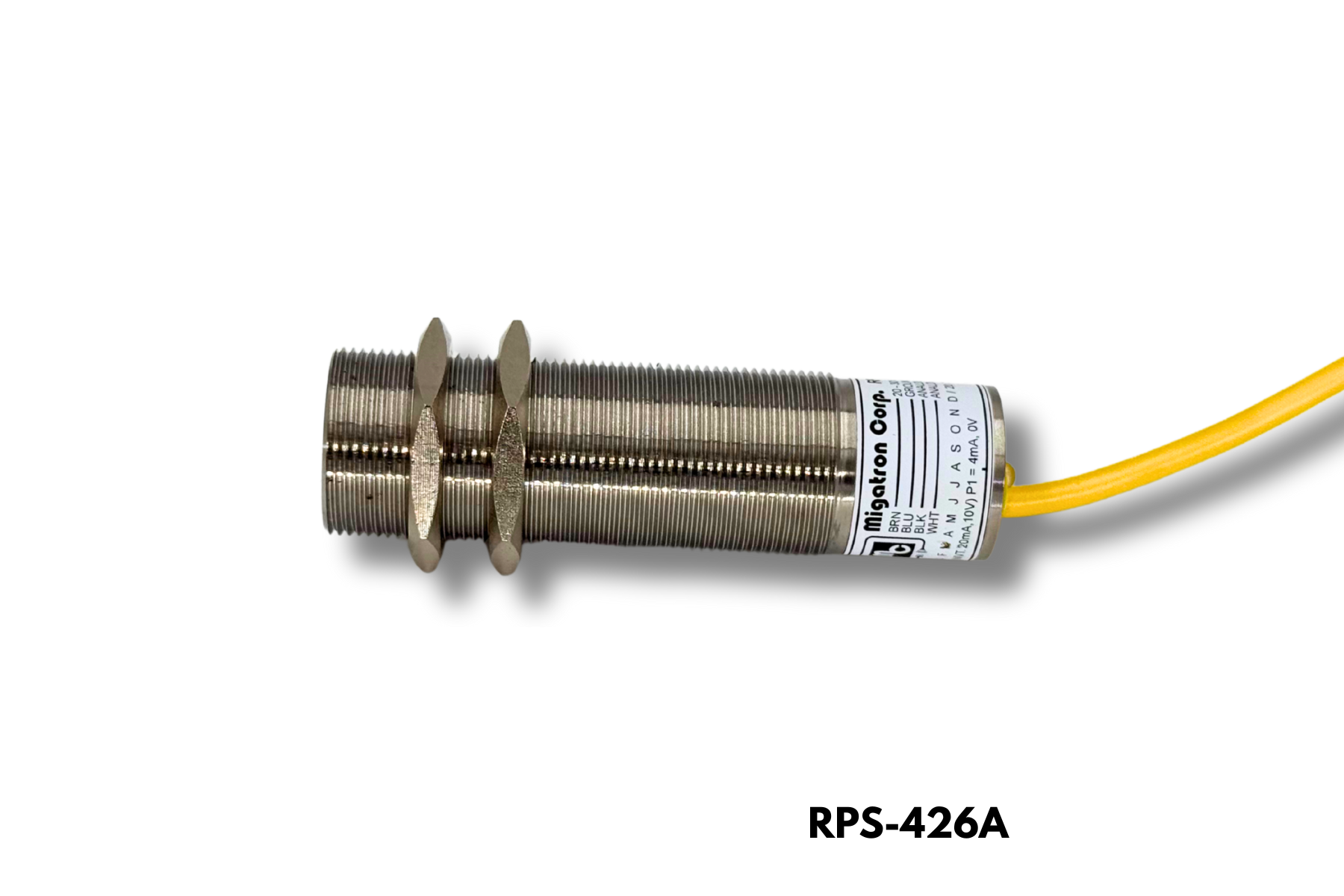

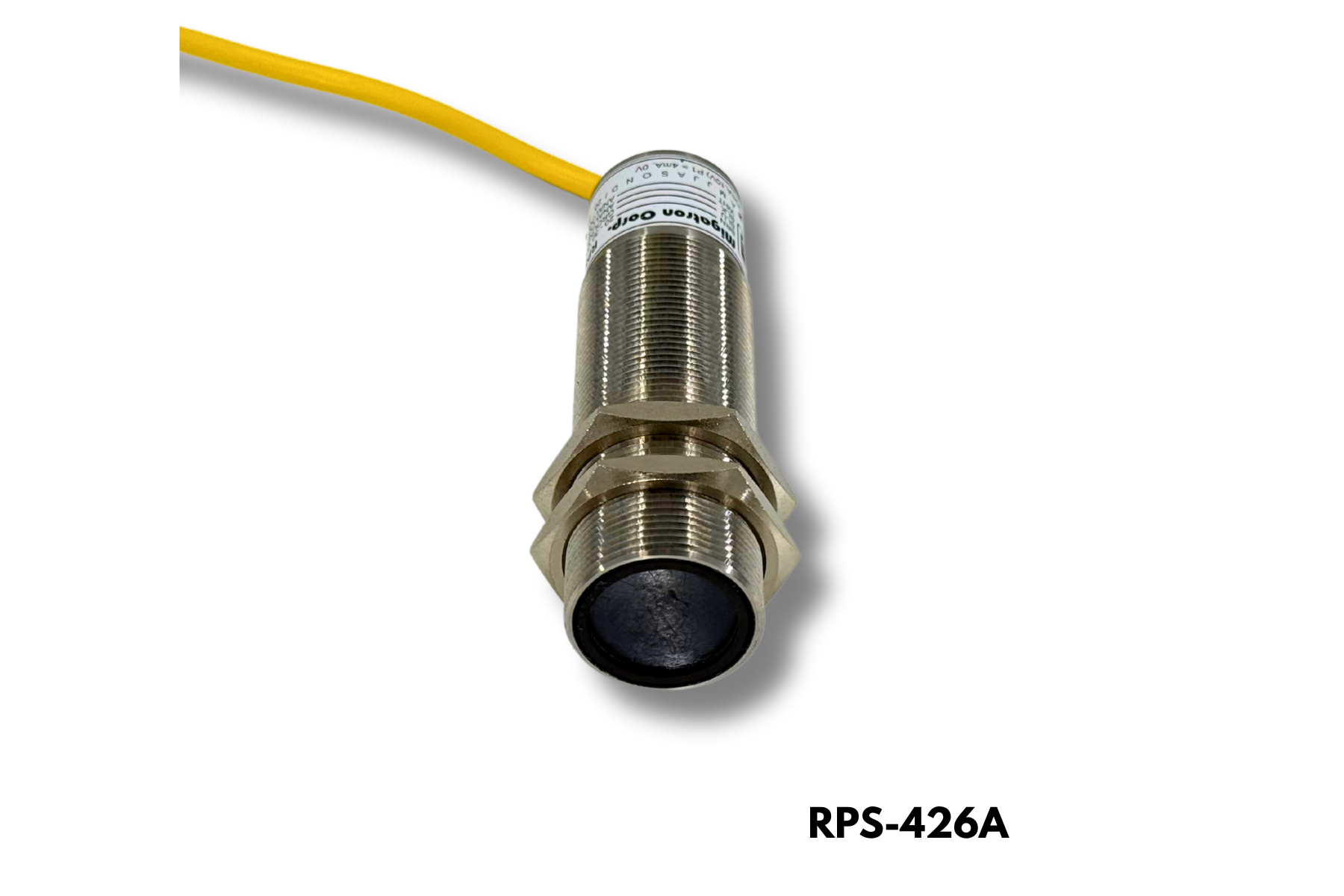

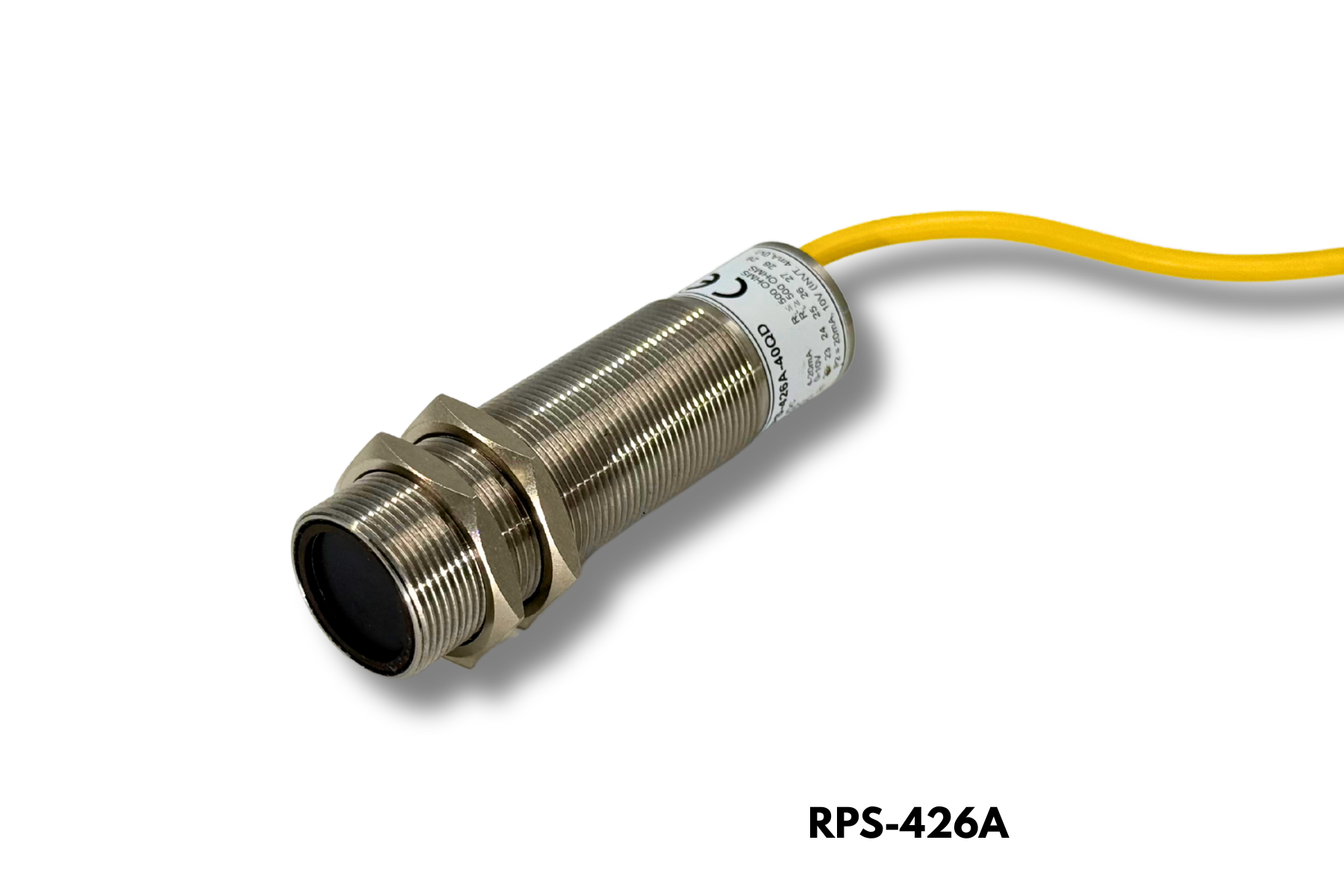

RPS-426A in Stainless Steel Housing

  • Adjustable Zero & Span
  • Various Sensing Ranges
  • Narrow Sensing Beam
  • LED Strength Indicator
  • Short Circuit Protected
  • Reverse Polarity Protected
  • Analog Current & Voltage Outputs
  • Inverted & Non-Inverted Outputs
  • Self Contained Barrel Housing
  • Input Voltage 20 – 30 VDC
  • Available in PVC or Stainless Housing

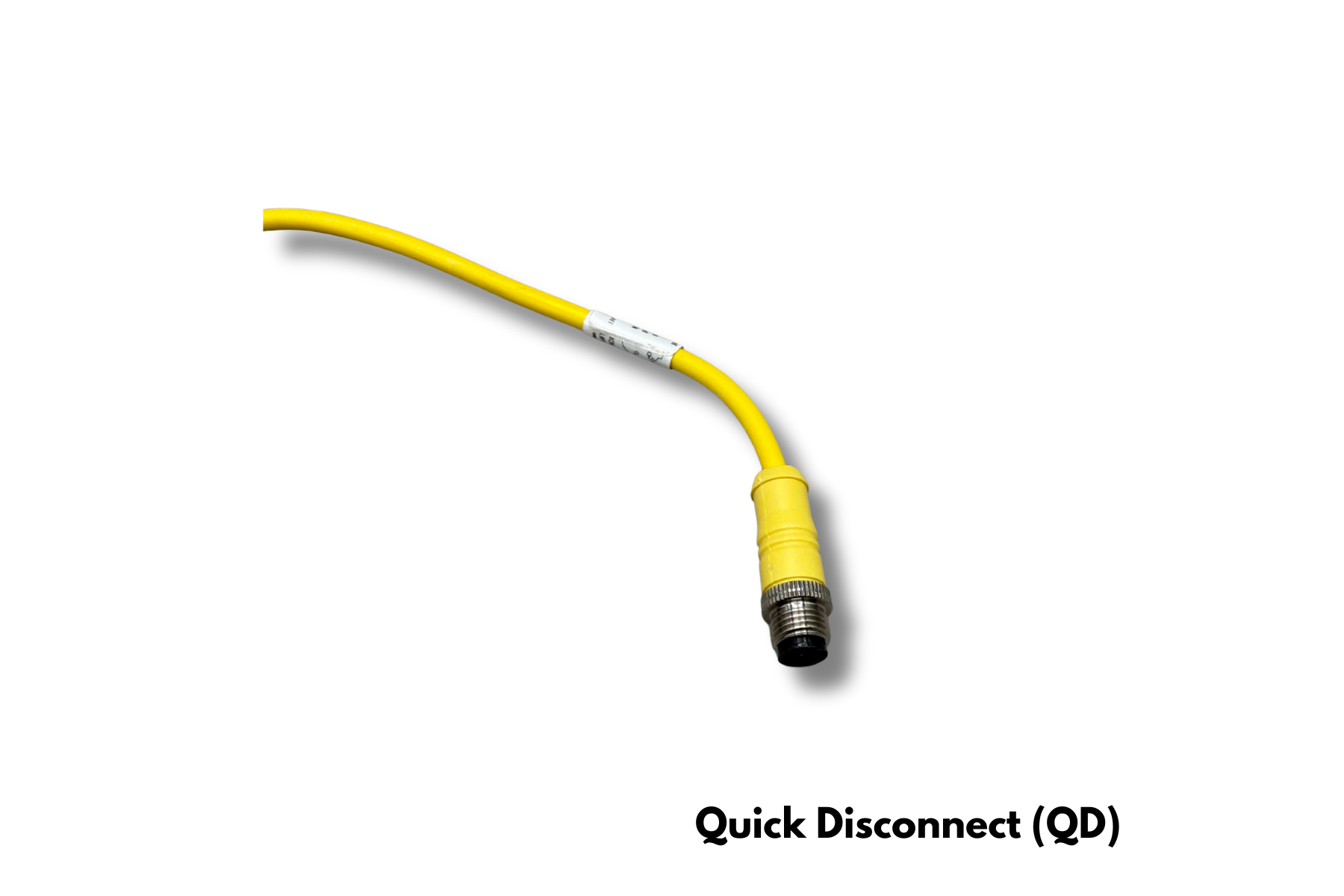

  • Quick disconnect (QD) version is also available.

$572.00$1,078.00

Categories & Tags
SKU N/A Category Tags ,

Description

About the RPS-401A Sensor

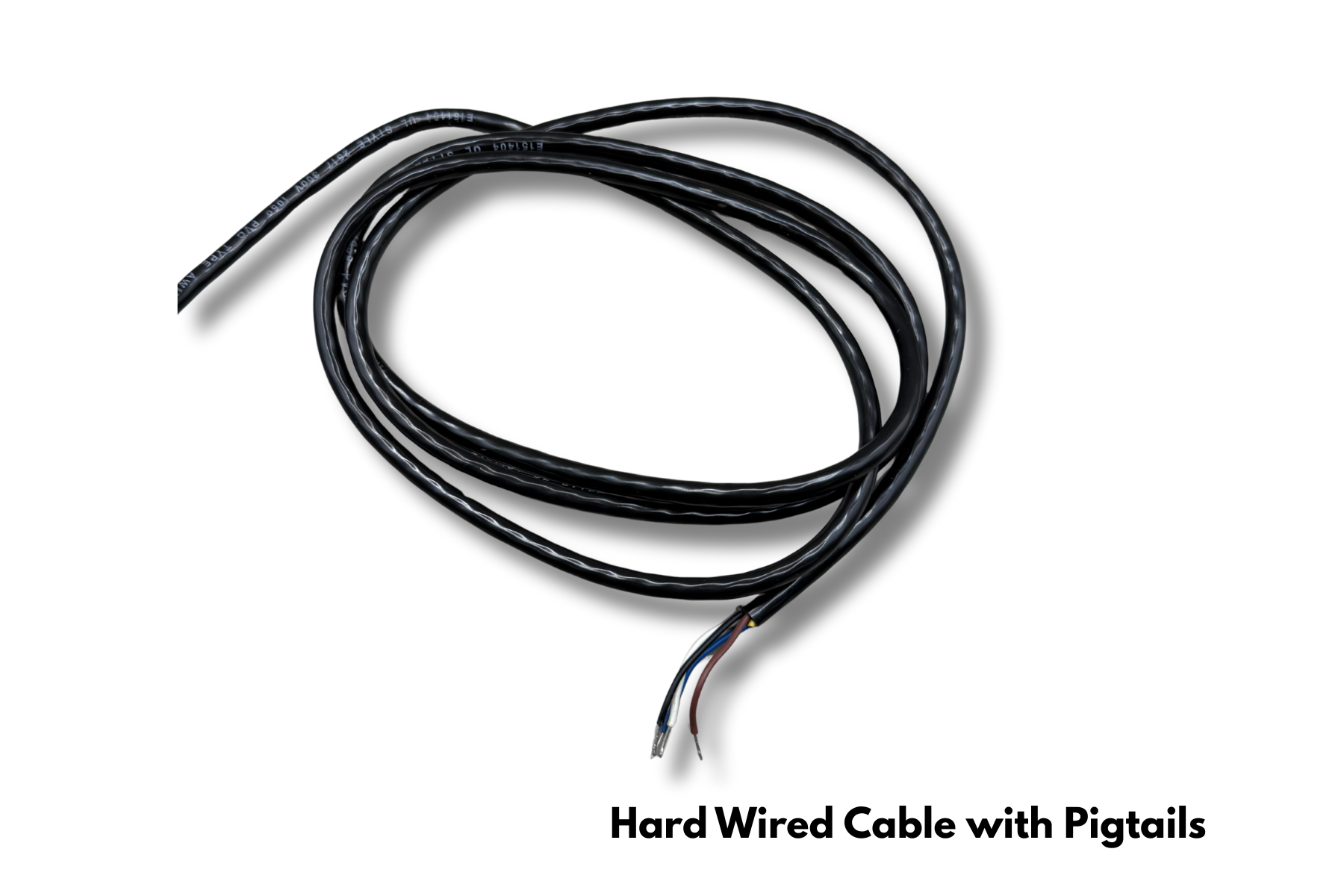

The RPS-401A analog ultrasonic sensors are enclosed in a PVC barrel housing and are completely self contained. They are powered by 20 – 30VDC and are reverse polarity protected. The sensors have a narrow beam angle which enables them to get into tight places. A flat target can tilt up to 8 degrees and still be detected. The RPS-401A have two short circuit protected analog outputs, 4 – 20mA and 0 – 10VDC. These outputs can easily be inverted and scaled over almost any range by means of adjusting the near point P1 and far point P2. For setup purposes a LED strength indicator is provided. The LED is green when not detecting a target. The color can vary from yellow to bright red when detecting a target depending on how strong the reflected signal is from the target. Yellow indicates a weak signal and bright red indicates a strong signal. The transducer frequency for the RPS-401A is 175kHz for the 4 – 40″ range and 150kHz for the 8 – 80″ range. The RPS-401A housing is constructed of PVC plastic. See the RPS-426A data sheet for the Stainless Steel version. The housing measures 30 mm x 104 mm. A standard 6′ cable is provided, or a quick disconnect (QD) version is also available.

About the RPS-426A Sensor

The RPS-426A analog ultrasonic sensors are enclosed in a Stainless Steel barrel housing and are completely self contained. They are powered by 20 – 30VDC and are reverse polarity protected. The sensors have a narrow beam angle which enables them to get into tight places. A flat target can tilt up to 8 degrees and still be detected. The RPS-426A have two short circuit protected analog outputs, 4 – 20mA and 0 – 10VDC. These outputs can easily be inverted and scaled over almost any range by means of adjusting the near point P1 and far point P2. For setup purposes a LED strength indicator is provided. The LED is green when not detecting a target. The color can vary from yellow to bright red when detecting a target depending on how strong the reflected signal is from the target. Yellow indicates a weak signal and bright red indicates a strong signal. The transducer frequency for the RPS-426A is 175kHz for the 4 – 40″ range and 150kHz for the 8 – 80″ range. The RPS-426A housing is constructed of Stainless Steel and is able to with withstand higher temperatures than the PVC version(there is an up-charge for this housing). See the RPS-401A data sheet for the PVC plastic version. The housing measures 30 mm x 104 mm. A standard 6′ cable is provided, or a quick disconnect (QD) version is also available.

Specifications

Operational Range: 40″ Models – Adjustable 4″ to 40″
80″ Models – Adjustable 8″ to 80″
Power Input: 20-30 VDC
Reverse Polarity Protected
Input Current: 90mA
Ambient Temperature: 0 – 60°C or 32 – 140°F
Humidity: 0 – 95% Non-Condensing
Housing: RPS-401A – PVC with PVC sensing face
RPS-426A – 303 Grade Stainless Steel with PPS and
PTFE sensing face
Outputs: Analog Current Sourcing Output
4 – 20mA Inverted & Non-Inverted
Load 0 Ohms to 500 OhmsAnalog Voltage Output
0 – 10V Inverted & Non-Inverted
Load 500 Ohms to infinity
Short Circuit Protected
Transducer Frequency: 40″ Models – 175kHz
80″ Models – 150kHz
Response Time: 40″ Models – 16ms
80″ Models – 35ms
Weight: RPS-401A Models – 9 oz.
RPS-426A Models – 12 oz.

Ordering Information

Part Number Range Output
RPS-401A-40 4″ – 40″ 0 – 10VDC and 4 – 20mA Analog
RPS-401A-80 8″ – 80″ 0 – 10VDC and 4 – 20mA Analog
RPS-401A-40QD 4″ – 40″ 0 – 10VDC and 4 – 20mA Analog – Cable Sold Separately
RPS-401A-80QD 8″ – 80″ 0 – 10VDC and 4 – 20mA Analog – Cable Sold Separately
RPS-426A-40 4″ – 40″ 0 – 10VDC and 4 – 20mA Analog
RPS-426A-80 8″ – 80″ 0 – 10VDC and 4 – 20mA Analog
RPS-426A-40QD 4″ – 40″ 0 – 10VDC and 4 – 20mA Analog – Cable Sold Separately
RPS-426A-80QD 8″ – 80″ 0 – 10VDC and 4 – 20mA Analog – Cable Sold Separately
F32- 5001183 2 meter Cable for QD version, M12 4-Pin 22 AWG
F32- 5001186 5 meter Cable for QD version, M12 4-Pin 22 AWG
PD6000 Digital Meter with 4 Relays
