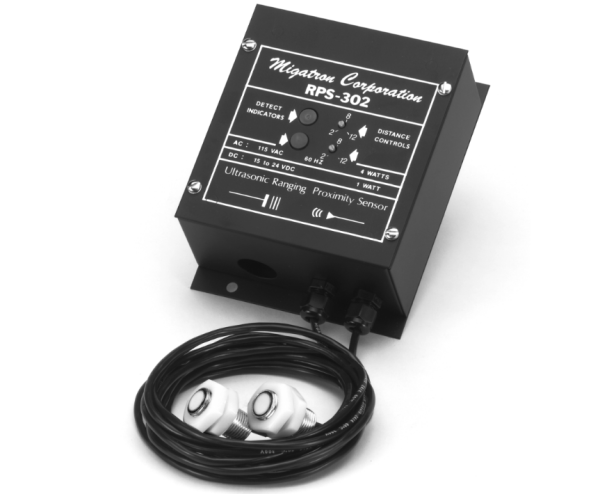

The RPS-302 remote sensor has 2 sealed, multiplexed transducers with independent range control adjustments, LED indicators, and form C relay outputs. This sensor also has a unique master and slave feature which enables many of the same units to be used within close proximity of one another without cross-talk interference. For example, if three sensors are needed in a close area, one sensor would be left as a master and the other two would be slaves. This is done by means of the X IN, X OUT, and GND connection on the board. One sensor (master) would send a signal by means of the X OUT and GND terminals.

These would be connected to the X IN and GND terminals of the other two sensors (slaves). With the sensors connected in this way, all units would be transmitting and receiving at the same time. This then would prevent cross-talk and enable all three sensors, or all six transducers, to be used at the same time in close proximity of one another. There are also separate turn ON and turn OFF DELAY potentiometers provided for each transducer. All four DELAY controls are located along side the black module inside the enclosure box. The remote transducers allow for mounting of the sensor heads in cramped spaces while the controller is out of the way. The (2) independent and isolated form C relays furnish N.O. and N.C. outputs. This sensor, operates at a frequency of 222kHz for the 14″ and 36″ ranges and 150kHz for the 72″ range. This sensor has a narrow sensing beam. Sensing ranges available for the RPS-302 include 4″ to 14″, 5″ to 36″ and 8″ to 72″. Mounting flanges, LED indicators, ranging potentiometers, and 6-ft. transducer cables are included. Optional cable lengths are available.

Proximity Detection

Proximity detection is the detection of an object in a given range. The detection range of the RPS-302 is controlled by the “Range Control” potentiometers located on the front cover of the controller. Any object within the desired range is detected, while objects out of range are ignored. The detect point is independent of size, material, and reflectivity.


Operational Range:Adjustable 4″ to 14″
Adjustable 5″ to 36″
Adjustable 8″ to 72″
Power Input: 120VAC120VAC
15-24 VDC
Input Current:
Ambient Temperature:
40 Milliamps
0ºC to 60ºC
or 32ºF to 140ºF
Transducer Housing:Transducer:

Output: N.O., N.C.

Metal Enclosure
Galvanized Steel in 14″ or 36″,
Plastic in 72″
Silicone Rubber or
Teflon Sensing Face
Isolated Form C Relay
.5 Amp Maximum
at 120VAC
12VDC Logic Signal
Transducer Frequency:222 kHz for 14″ and 36″
150kHz for 72″
Adjustable Response Time:4″ to 14″ 5″ to 36″ 8″ to 80″
ON 30mS – 2S – 50mS – 2S 60mS – 2S
OFF 30mS – 2S – 50mS -2S 60mS – 2S
Weight of Controller:34.2 ounces
Weight of Each Transducer:2.2 ounces

Part Number



4″ – 14″
5″ – 36″
8″ – 72″


Isolated Form C Relay for each Transducer
